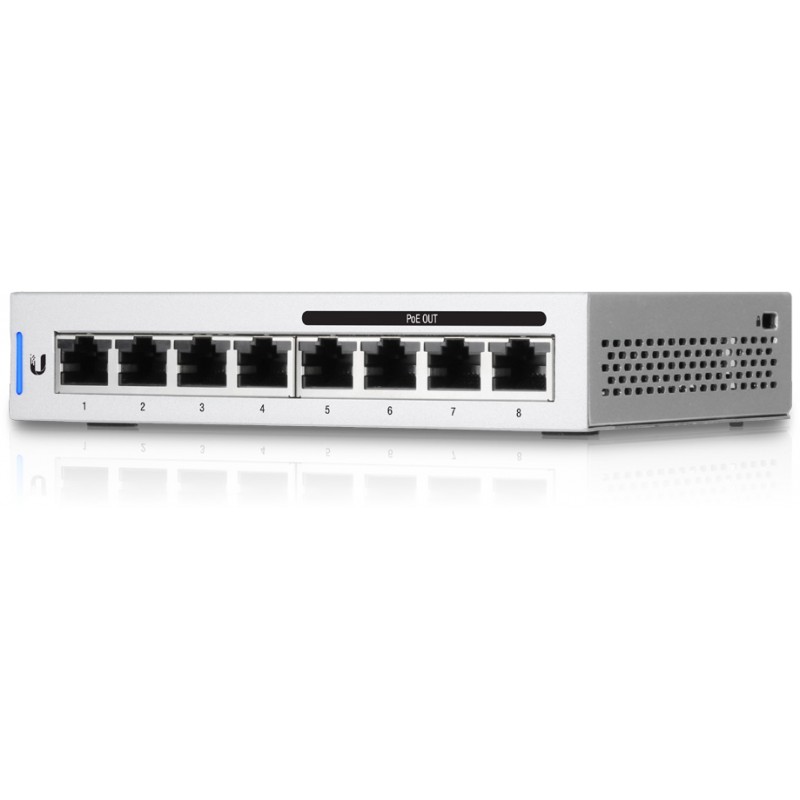

Ubiquiti Networks 5 x Switch 8
8 x RJ-45, 4 Auto-Sensing IEEE 802.3af PoE Ports, 12W
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
US-8-60W-5
Data sheet
- 10G support
- No
- Certification
- ETSI300-019-1.4, CE, FCC, IC
- Depth
- 99.5 mm
- Height
- 30.7 mm
- Housing material
- Steel
- Operating temperature (T-T)
- -5 - 45 °C
- Power over Ethernet (PoE) ports quantity
- 4
- Weight
- 432 g
- Width
- 148 mm
Specific References
- EAN13
- 0810354029981
8 x RJ-45, 4 Auto-Sensing IEEE 802.3af PoE Ports, 12W
