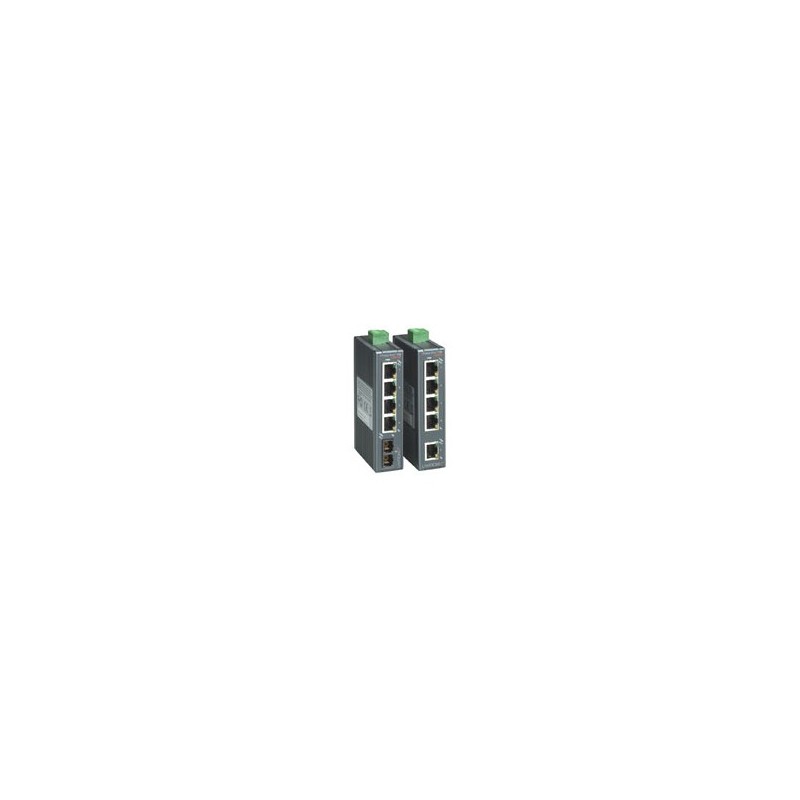

Lantronix XPress-Pro SW 52000

4 x 10/100Base-TX ports, 2048 MAC addresses, Din Rail

X52000001-01

More info

Industrial -10 -60°C 5-Port 10/100TX Ethernet Switch with Din Rail



With a complete line of rugged, dependable, affordable Ethernet switches, the XPress-Pro SW series delivers a total networking solution for the industrial environment.



Part of the DeviceLinx family of network enablement products, XPress-Pro SW series managed and unmanaged Ethernet switches from Lantronix are designed to give you performance you can count on in the harsh environments often found at the edge of the network.



Whether they’re on the factory floor or in the field, XPress-Pro switches will provide flawless communication when you need it most. These full-featured Ethernet switches are the latest Lantronix innovations for the industrial automation marketplace.



The XPress-Pro SW 52000 compact, fast Ethernet switches are equipped with 5-port 10/100Base-TX or 4-port 10/100Base-TX plus 1-port 100Base-FX networking. By using standard auto-negotiation and the inclusion of auto-MDIX, Lantronix delivers a cost-effective way of integrating legacy 10 Mbps networks with 100 Mbps fast Ethernet networks.



SW 52000 TX ports auto-negotiate for 10/100 Mbps speed and auto detect full or half-duplex mode. The fiber port on the SW 52012F accommodates multimode SC with a fiberoptic connection between two nodes that can reach up to two kilometers. SW 52000 series switches can be DIN-rail mounted and are equipped with terminal block power input to accommodate just about any application that requires an Ethernet switch.



- 2048 MAC addresses

- 384 kilobit buffer memory

- 0.1A max, 12 to 48 VDC power input

- -10° to 60° C (14° to 140° F) operating temperature range

- Industrial plastic case supports DIN-rail mounting

Features

CertificationRoHS

Data Sheet
