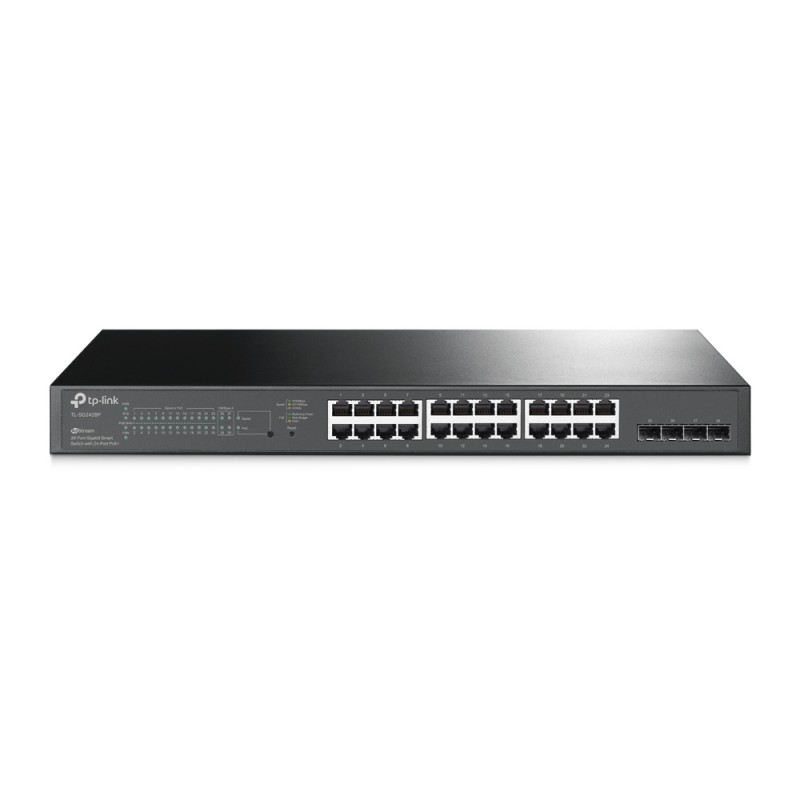

TP-Link TL-SG2428P
  • TP-Link TL-SG2428P
  • TP-Link TL-SG2428P
  • TP-Link TL-SG2428P

TP-Link TL-SG2428P

JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
Out of Stock
Reference: TL-SG2428P

Require Project Pricing?

Click here to email your parts list and we will send you a quote
  • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.




Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.


TP-Link
TL-SG2428P

Data sheet

Certification
CE, FCC, RoHS
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m), 1000BASE-X: MMF, SMF
PoE+ Ports(RJ45)
Standard: 802.3at/af compliant, PoE+ Ports: 24 Ports, Power Supply: 250 W
Bandwidth/Backplane
56 Gbps
Packet Forwarding Rate
41.7 Mpps
Quality of Service
Support 802.1p CoS/DSCP priority, Support 8 priority queues, Queue scheduling: SP, WRR, SP+WRR, Port/Flow- based Rate Limiting, IPv6 QoS, Voice VLAN
L2 and L2+ Features
Static Routing, DHCP Relay, DHCP Server, IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group), Spanning Tree STP/RSTP/MSTP, BPDU Filtering/Guard, TC/Root Protect, Loopback detection, 802.3x Flow Control, LLDP,...
VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs), MAC/Protocol-based VLAN
Access Control List
L2–L4 package filtering, MAC ACL, IP ACL, Combined ACL, IPv6 ACL
Security
AAA, Port Security, DHCP Snooping, IP-MAC-Port Binding, IPv6-MAC-Port Binding, ARP Inspection, 802.1x and Radius Authentication, SSH v1/v2, SSL v3/TLSv1.2, Broadcast/Multicast/Unknown-unicast Storm Control, Dos Defend
IPv6
Dual IPv4/IPv6 stack, Multicast Listener Discovery (MLD) Snooping, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6
IPv6 Applications
DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
System Requirements
Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features
Web-based GUI and CLI management, SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs, RMON (1, 2, 3, 9 groups), CPU Monitoring, Port Mirroring, Firmware Upgrade: TFTP & Web, System Diagnose: VCT, SYSLOG & Public MIBS, Dual Image ,EEE

Specific References

EAN13
6935364030667
