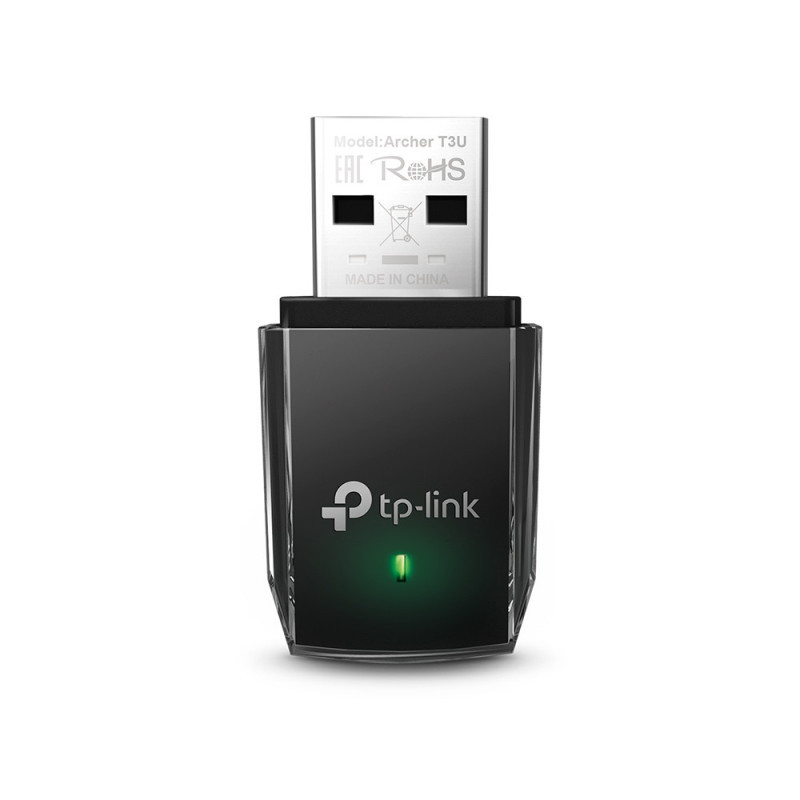

TP-Link Archer T3U

TP-Link Archer T3U, Wired, USB, WLAN, Wi-Fi 5 (802.11ac), 867 Mbit/s, Black
In Stock
Reference: ARCHER T3U
Reasons to Buy
  • Ultimate WiFi Speed* – AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
  • Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity
  • Mini design –Mini-sized design for convenient portability with a reliable high performance
  • Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
  • MU-MIMO** - Delivers highly efficient wireless connection
  • Supported Operating System – Supports Windows 10/8.1/8/7/XP, Mac OS X


Technical Headlines
  • Wired
  • USB 3.2 Gen 1 (3.1 Gen 1) WLAN
  • 867 Mbit/s
  • Wi-Fi Dual-band (2.4 GHz / 5 GHz)
  • Component for: PC/Laptop


Mini Size,
Big performance
AC1300 Mini Wireless MU-MIMO USB Adapter

High-Speed Dual Band Adapter for Better Connections
Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed WiFi (up to 867 Mbps over the 5 GHz band and 400 Mbps over the 2.4 GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.

Miniature Design - Take With You On the Go
Archer T3U has a smart design that is tinier than most USB adapters. Not only can it be inserted into any USB port but is also easy to carry.

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8 Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.

Boosted Throughput with MU-MIMO
With MU-MIMO technology, Archer T3U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.

Easy Setup
A friendly user interface comes on a CD for simple installation.

Advanced Security
WPA/WPA2 encryption standards ensure your wireless connections safety.

Operating System
Supports Windows, Mac OS
TP-Link
ARCHER T3U

Data sheet

Connectivity technology
Wired
Depth
19.7 mm
Frequency range
2.4 - 5 GHz
Height
10.3 mm
Host interface
USB
Interface
WLAN
Internal
No
LED indicators
Status
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks
Maximum data transfer rate
867 Mbit/s
Modulation
16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package height
30 mm
Package weight
90 g
Package width
138 mm
Quick installation guide
Yes
Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
USB ports quantity
1
USB powered
Yes
USB version
3.2 Gen 1 (3.1 Gen 1)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width
40.5 mm
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
WLAN data transfer rates supported
11,54,300,400,867 Mbit/s
Product colour
Black
Transmitting power (CE)
23 dBm
Transmitting power (FCC)
23 dBm
Antenna direction type
Omni-directional
Sustainability compliance
Yes
Harmonized System (HS) code
85176990
Antenna design
Internal
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
MU-MIMO
Yes

Specific References

EAN13
6935364083830

ARCHERT3U.pdf

TP-Link Archer T3U Data Sheet

Download (2.81MB)
