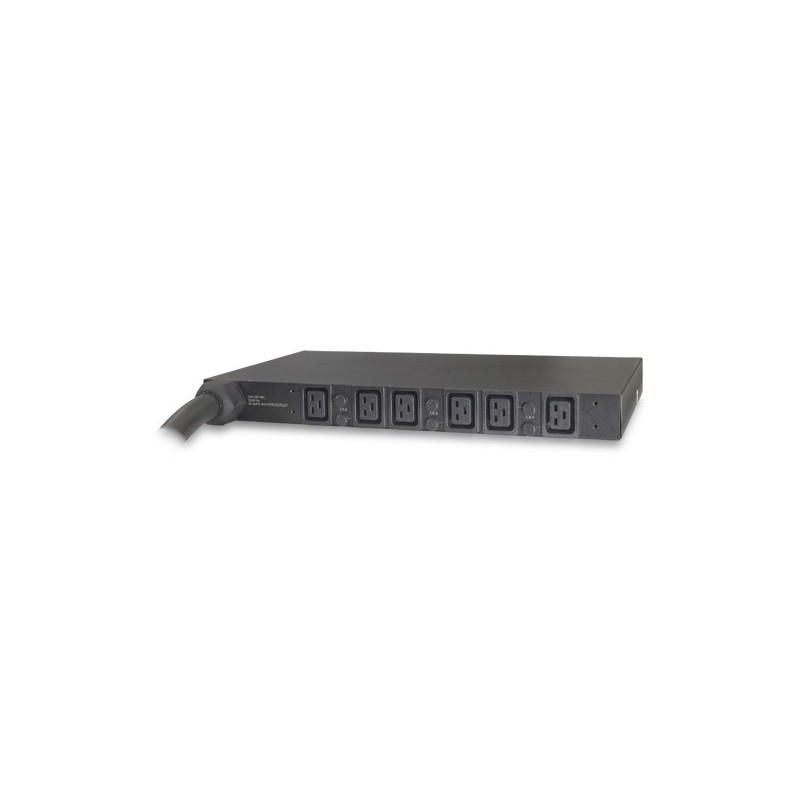

APC Basic Rack PDU AP7516
Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19
-High Power Density.
-Horizontal mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
AP7516
Data sheet
- Cable length
- 2.44 m
- Colour of product
- Black
- Dimensions (WxDxH)
- 437 x 254 x 44 mm
- Input connection type
- Hubbell CS8365C
- Operating relative humidity range
- 5 - 95 %
- Operating temperature range (T-T)
- -5 - 45 °C
- Output connections
- (6) IEC 320 C19
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 5 - 95 %
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 7.98 kg
Specific References
- EAN13
- 0731304232674
