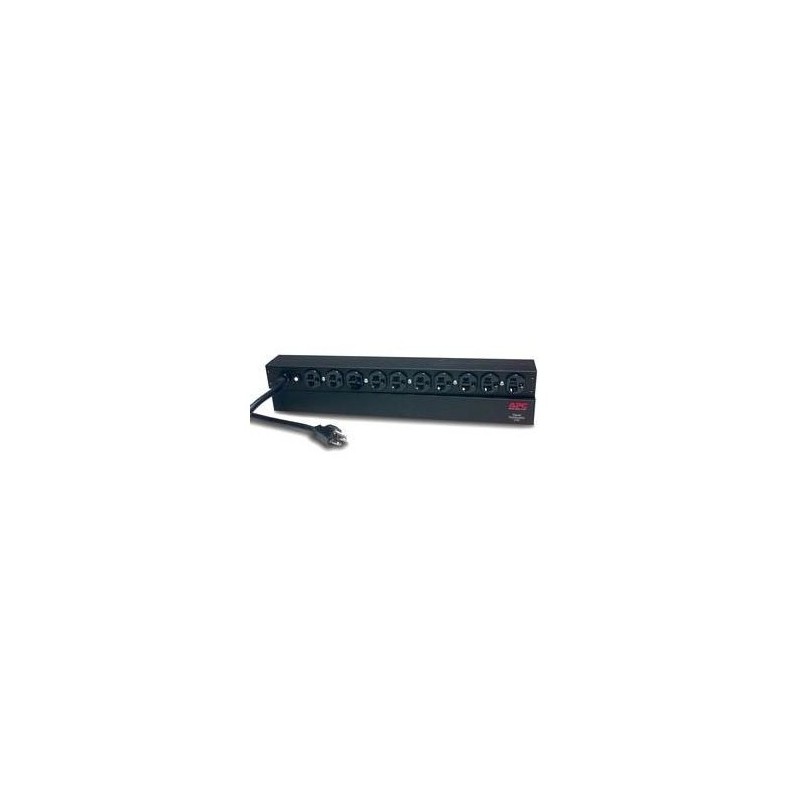

APC Basic Rack PDU AP9563
Basic Rack PDU , Input: 120V , Input Connections: NEMA 5-20P , Cord Length: 12 feet ( 3.66 meters ) , Output: 120V , Output Connections: NEMA 5-20R
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Data sheet
- Cable length
- 3.66 m
- Certification
- cUL Recognized,CSA,UL 1363,UL Recognized, RoHS
- Colour of product
- Black
- Dimensions (WxDxH)
- 447 x 57 x 44 mm
- Input connection type
- NEMA 5-20P
- Load capacity
- 2400 VA
- Maximum input current per phase
- 20 A
- Maximum total current draw per phase
- 20 A
- Nominal input voltage
- 120 V
- Operating temperature range (T-T)
- -5 - 45 °C
- Output connections
- 10x NEMA 5-20R
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
Specific References
- EAN13
- 0731304203889
