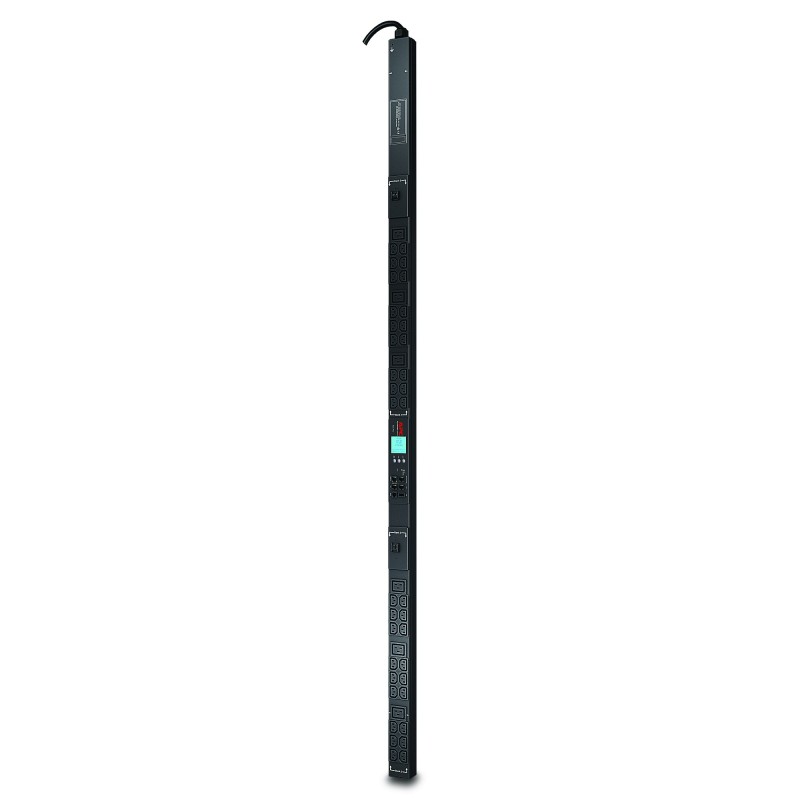

APC AP8853
Rack PDU 2G, Metered, ZeroU, 32A, 230V, (36) C13 & (6) C19
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Data sheet
- Cable length
- 3 m
- Certification
- RoHS, REACH
IEC 60950,VDE - Colour of product
- Black
- Dimensions (WxDxH)
- 56 x 44 x 1791 mm
- Input connection type
- IEC 309 32A 2P+E
- Maximum input current per phase
- 63 A
- Maximum total current draw per phase
- 400 A
- Nominal input voltage
- 200 - 230 V
- Nominal output voltage
- 400V
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 5 - 45 °C
- Operating temperature range (T-T)
- 5 - 45 °C
- Output connections
- 36x IEC 320 C13
6x IEC 320 C19 - Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 6930 g
Specific References
- EAN13
- 0731304277019
