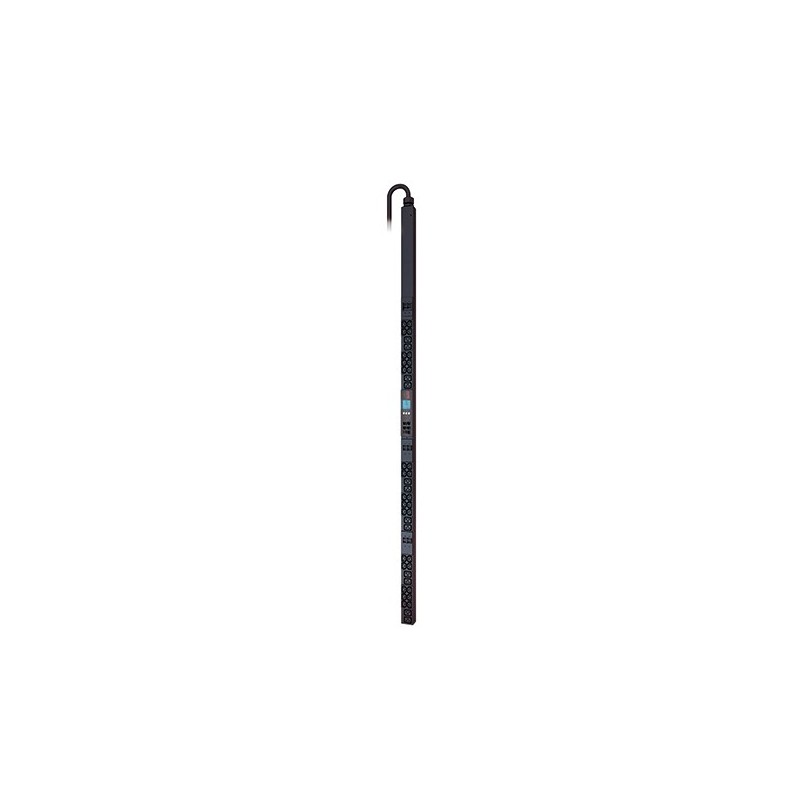

APC AP8886
Rack PDU 2G, Metered, ZeroU, 22.0kW(32A) 17.3kW(24A), 230V, (30) C13 & (12) C19
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
Data sheet
- AC outlet types
- C13 coupler, C19 coupler
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 1.83 m
- Certification
- EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE
REACH: No SVHCs - Colour of product
- Black
- Dimensions (WxDxH)
- 56 x 51 x 1829 mm
- Maximum current
- 96 A
- Maximum input current per phase
- 63 A
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 55 °C
- Output connections
- 30 x IEC 320 C13
12 x IEC 320 C19 - Package dimensions (WxDxH)
- 170 x 112 x 2050 mm
- Package weight
- 11550 g
- Power protection features
- Under voltage
- Rack mounting
- 0U
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 8720 g
Specific References
- EAN13
- 0731304289937
