APC AR8603A
APC AR8603A APC AR8603A APC AR8603A APC AR8603A

APC AR8603A

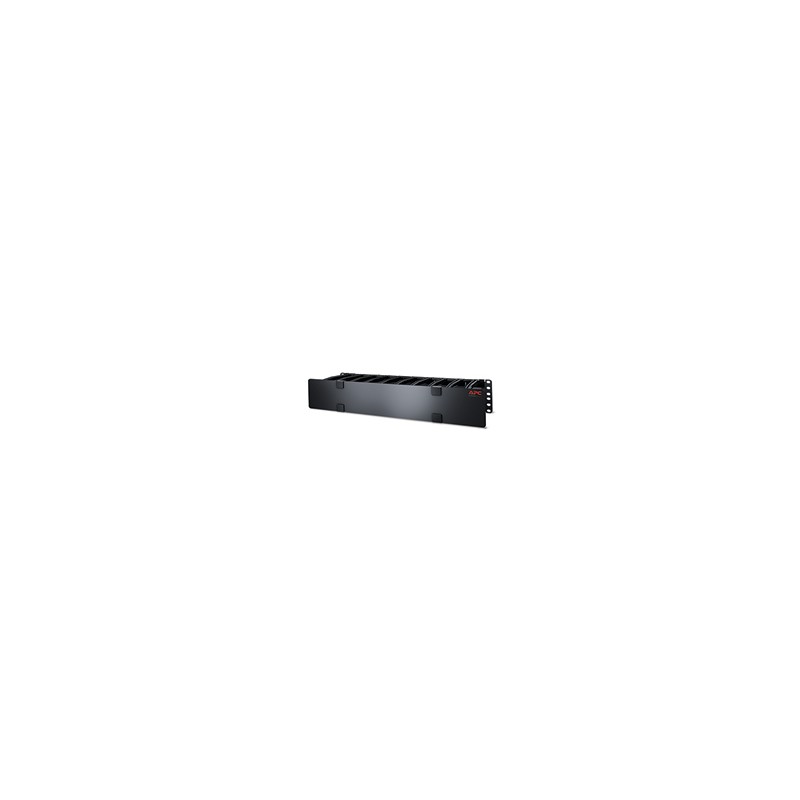

Cable Manager, Single-Sided, Horizontal, 2U, Black

AR8603A

Out of Stock

Horizontal Cable Manager, 2U x 6" Deep with Cable Tie-off bottom plate, Single-Sided with Cover



High density 2U, 6-in (150-mm) deep, horizontal cable manager with cover. Features cable access slots with pre-installed brush strips in the backplate for front to back cable pass-through and a bottom plate with features for additional cable tie-off and routing.



Cable protection

Smooth plastic fingers provide proper bend radius.



Trouble-free access

Covers with snap hinges provide trouble-free access to cables.



Cable passthrough and air containment

Pre-installed brush strips provide air containment and accessibility from the front to the rear of the enclosure.



Double-sided capable

Horizontal cable managers with 6" deep cable fingers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.



High capacity cable finger design

Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rackspace unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.



Cable tie-off bottom plate

Horizontal cable manager bottom plate provides cable tie-off features for bundling cable with toolless hook-and-loop cable managers (AR8621).



Horizontal cable routing front-to-back

Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK
Depth165 mm
Height88 mm
Weight1200 g
Width482 mm

AR8603A.pdf

APC AR8603A Data Sheet

Download (1.07M)
