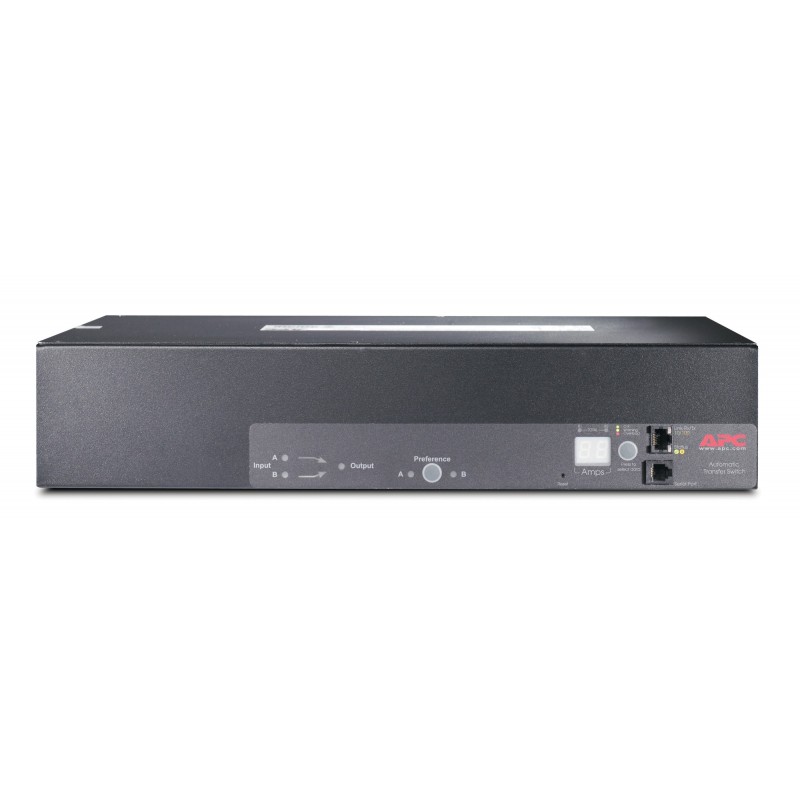

APC Rack ATS AP7724
APC Rack ATS AP7724 APC Rack ATS AP7724 APC Rack ATS AP7724 APC Rack ATS AP7724

APC Rack ATS, 230V, 32A, IEC309 in, (16)C13 (2)C19 out

Rack ATS, 2U 230V, 32A, IEC309-32A In, (16)C13, (2)C19 Out

AP7724

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

APC Rack-mount Transfer Switches , Input: 230V , Input Connections: IEC 309 32A 2P+E , Cord Length: 8 feet ( 2.44 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19.

Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable, Warranty card.



- Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

- Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

- Remote Current Monitoring



Agility

- Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.



Availability

- Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

- Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

- Information Displays

Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
CertificationEN 55022 Class A, FCC Part 15 Class A RoHS 7b
Operating temperature (T-T)-5 - 45 °C
Weight6860 g
