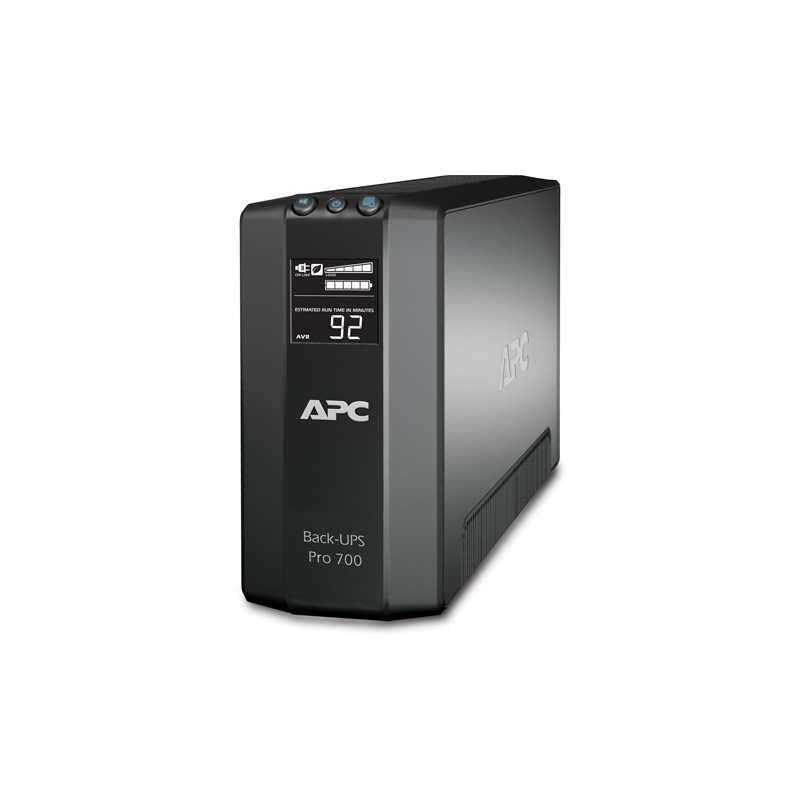

APC Back-UPS 700
Back UPS RS LCD 700 Master Control
Power-saving outlets
- Automatically cuts power to idle equipment to conserve electricity.
Disconnected battery notification
- Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Automatically cuts power to idle equipment to conserve electricity.
Disconnected battery notification
- Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
Data sheet
- Battery recharge time
- 12 h
- Battery technology
- Sealed Lead Acid (VRLA)
- Cable length
- 1.83 m
- Certification
- FCC Part 15 Class B, FCC Part 68, NOM, UL 1778
- Colour of product
- Black
- Dimensions (WxDxH)
- 91 x 310 x 190 mm
- Noise level
- 97.4 dB
- Nominal input voltage
- 120 V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Output connections
- 3 x NEMA 5-15R\n3 x NEMA 5-15R
- Output power
- 420 W
- Output power capacity (VA)
- 700 VA
- Package dimensions (WxDxH)
- 138 x 442 x 252 mm
- Replacement battery cartridge
- RBC17
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -14 - 40 °C
- Surge energy rating
- 355 J
- Weight
- 7150 g
Specific References
- EAN13
- 7313042667920
