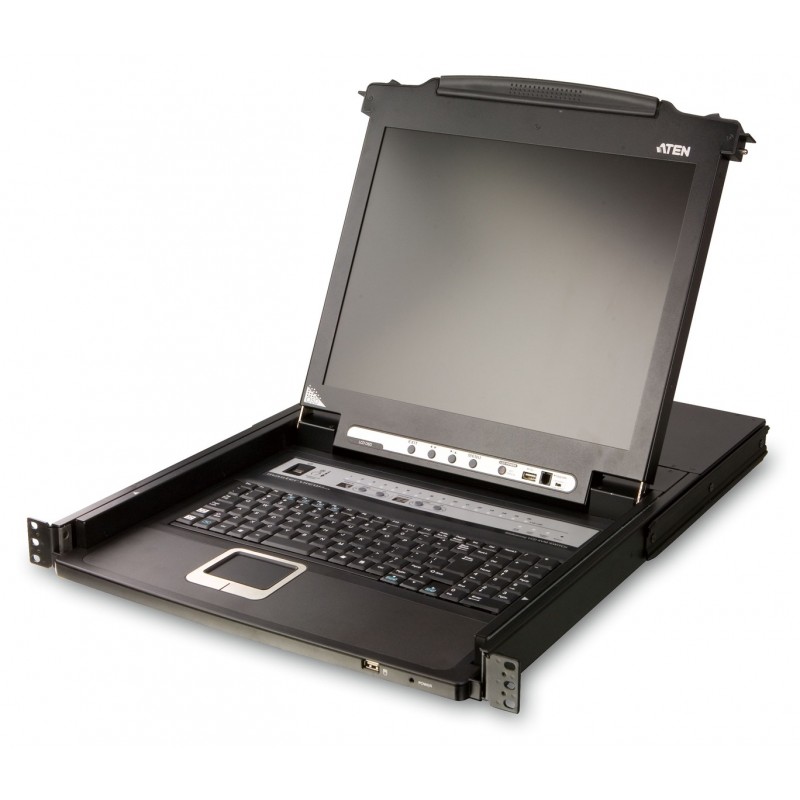

Aten CL5716
16-Port 17" LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port
Features
- Integrated KVM console with 17" LCD monitor in a Slideaway™ housing.
- Available with or without Fingerprint Identification Reader.
- Space saving technology - up to two consoles (one bus) control up to 16 computers.
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A).
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice.
- LCD module USB port allows each computer to access USB peripherals.
- LCD module rotates up to 115 degrees for a more comfortable viewing angle.
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun.
- Supports multimedia USB keyboards for PC, Mac and Sun.
- Auto PS/2 and USB interface detection.
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere.
- Supports external USB mouse.
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz.
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus.
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position.
- Port names automatically reconfigured when station sequence is changed.
- Two level password security - only authorized users can view and control computers.
- Supports one administrator and four user accounts with separate profiles.
- Auto Scan mode enables continuous monitoring of user-selected computers.
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation.
- Hot pluggable - add or remove computers without having to power down the switch.
- Beeper on/off via hotkey and OSD.
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable.
Package Contents
- 1x CL5716 LCD KVM Switch with standard Rack Mount Kit
- 1x 2L-5202P PS/2 KVM Cable
- 1x 2L-5202U USB KVM Cable
- 1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x 1ADP-0005-005G Power Cord (AC Power Models)
- 1x User Instructions
- Integrated KVM console with 17" LCD monitor in a Slideaway™ housing.
- Available with or without Fingerprint Identification Reader.
- Space saving technology - up to two consoles (one bus) control up to 16 computers.
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A).
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice.
- LCD module USB port allows each computer to access USB peripherals.
- LCD module rotates up to 115 degrees for a more comfortable viewing angle.
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun.
- Supports multimedia USB keyboards for PC, Mac and Sun.
- Auto PS/2 and USB interface detection.
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere.
- Supports external USB mouse.
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz.
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus.
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position.
- Port names automatically reconfigured when station sequence is changed.
- Two level password security - only authorized users can view and control computers.
- Supports one administrator and four user accounts with separate profiles.
- Auto Scan mode enables continuous monitoring of user-selected computers.
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation.
- Hot pluggable - add or remove computers without having to power down the switch.
- Beeper on/off via hotkey and OSD.
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable.
Package Contents
- 1x CL5716 LCD KVM Switch with standard Rack Mount Kit
- 1x 2L-5202P PS/2 KVM Cable
- 1x 2L-5202U USB KVM Cable
- 1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x 1ADP-0005-005G Power Cord (AC Power Models)
- 1x User Instructions
Data sheet
- Colour of product
- Black
- Compatible operating systems
- Windows 2000/XP/Vista
Linux
Mac
Sun - Connectivity technology
- Wired & Wireless
- Dimensions (WxDxH)
- 480 x 634 x 44 mm
- Display
- LCD
- I/O ports
- 1 x SPHD-18 Male
16 x SPHD-15 Female
2 x USB Type-A Female
1 x DB-25 Male
1 x RJ-11 Female
1 x 3-prong AC Socket - Keyboard port type
- USB, PS/2
- Maximum resolution
- 9600 x 600 DPI
- Mouse port type
- USB, PS/2
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Ports quantity
- 16
- Power consumption (typical)
- 27.5 W
- Power requirements
- 100-240 V, 1 A
- Power supply type
- AC
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 80 %
- Storage relative humidity range
- 0 - 80 %
- Storage temperature (T-T)
- -20 - 60 °C
- Storage temperature range (T-T)
- -20 - 60 °C
- Weight
- 14000 g
Specific References
- EAN13
- 0672792100598
