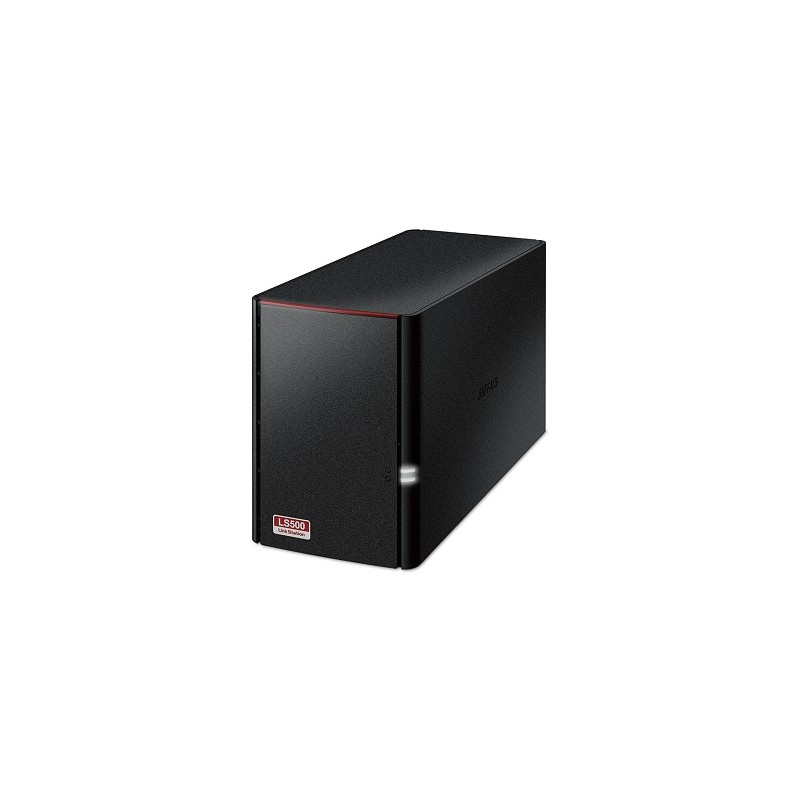

Buffalo LinkStation 520
Buffalo LinkStation 520 Buffalo LinkStation 520 Buffalo LinkStation 520 Buffalo LinkStation 520 Buffalo LinkStation 520 Buffalo LinkStation 520

Buffalo LinkStation 520

LinkStation 520D - NAS server Enclosure - SATA 3Gb/s - RAID 0, 1, JBOD - Gigabit Ethernet

LS520DE-EU

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Buffalo Technology's LinkStation 520D series is a customizable, large capacity Network Attached Storage solution with great flexibility.

The LS520D features a robust dual core processor and is super-fast with impressive start-up and shut down speed as well as read and write speeds up to 110 MB/s!

The LS520 makes intensive data storage tasks easy, and users can choose from RAID 0/1/JBOD support for customized capacity and redundancy according to their specific needs.

LS520 users will enjoy its intuitive and quick interface and expanded power control features which include on/off scheduling, Wake on LAN, and HDD spin down. Thus enabling the LS520 to stop working when you do and greatly lessen its power consumption.



- Two bay NAS for performance, reliability, and large capacity. Available as a diskless Enclosure or fully populated with 2, 4, 6 or 8TB capacity.

- High-performance Dual Core CPU and 256MB of DDR3 RAM and read and write speeds up to 110MB/s.

- Power control features include on/off scheduling, Wake on LAN, and HDD spin down.

- Easily open LinkStation™ files from a remote site or with WebAccess Apps available for iOS and Android®

- 5 NovaBACKUP® Buffalo Edition licenses included for PCs.

- The LS520 is a reliable, central location to store and protect all your data – to and from every device in your home network.
Depth205 mm
Ethernet LAN (RJ-45) ports1
Height126 mm
Operating temperature (T-T)5 - 35 °C
Supported network protocolsTCP/IP
Weight2500 g
Width87 mm

LS520DE-EU.pdf

Buffalo LinkStation 520 Data Sheet
