Loose Tube Internal/External Fibre Cable

The Starlight™ Multi-purpose Uni-loose Tube Distribution Fibre Cable provides a cost effective solution to all internal or external fibre cabling requirements, particularly where on-site fusion splicing of pigtails is the preferred termination technique.

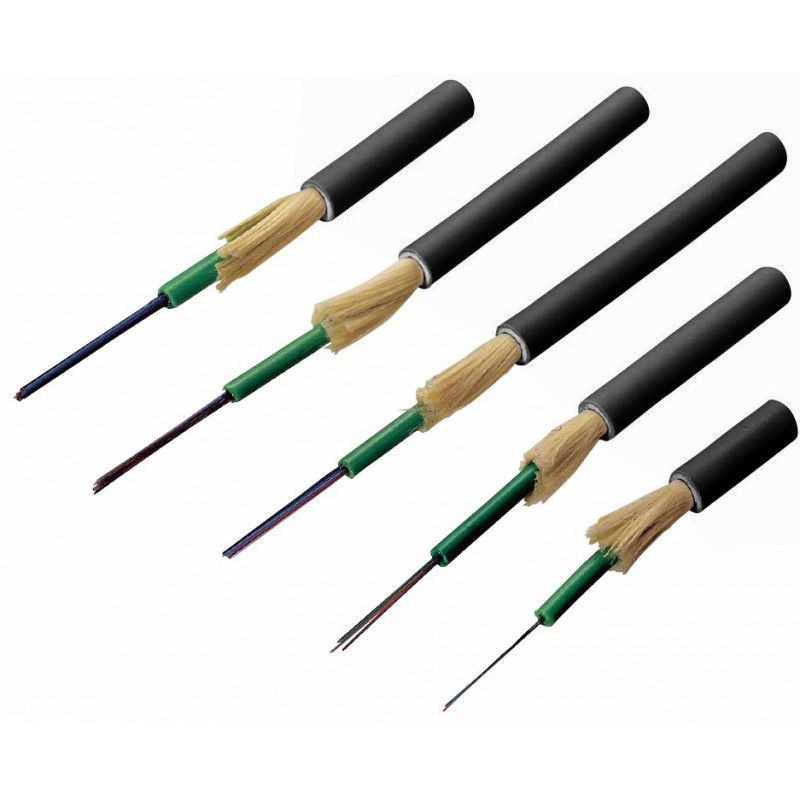

The cable consists of a single central uni-tube containing individually colour coded 250μm buffered fibres. This tube is embedded in an E-glass roving, and oversheathed with a single Low Smoke Zero Halogen (LSZH) outer jacket. The jacket is flame retardant, UV stabilised and extremely resistant to the ingress of moisture.

A choice of multimode and singlemode fibre types and specifications are offered with fibre counts from four to twenty four in the standard range.

Their very small diameter, lightweight and excellent environmental performance makes these cables ideal for installation in a broad range of network applications including LAN backbones, networks with mixed indoor and outdoor cabling, outdoor in flooded ducts and any premises distribution system.

Features:

• Fire retardant LSZH jacket
• Up to 24 fibres
• OS2 available up to 96f (other fibre types also available on request - call for pricing/availability)
• Choice of fibre type and specification
• Small diameter
• Water and UV resistant
• Internal or external use
• Small bending radius
• Low cost

The Table below shows the performance of each cable type and the maximum length the cabe should be run to achieve that performance-

	62.5/125 (OM1)	50/125 (OM2)	50/125 (OM3)	50/125 (OM4)	9/125 (OS1)
100Mbs	2km	2km	2km	2km	40km
1Gbs	275m	550m	800m	1100m	100km
10Gbs	33m	82m	300m	550m	40km
40Gb / 100Gbs	-	-	100m	125m	40km
