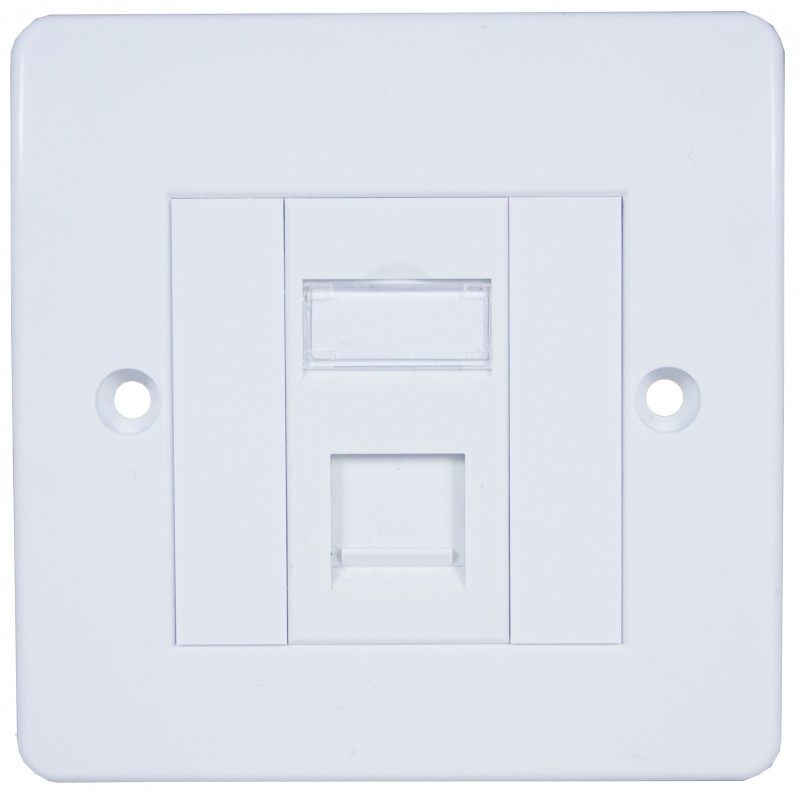

Cat5e FTP RJ45 Modules with Faceplate
Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate Cat5e FTP RJ45 Modules with Faceplate

Cat5e FTP RJ45 Modules with Faceplate

Faceplates pre-loaded with Cat5e FTP Modules. Available with 1 or 2 or 4 modules

008-001-043-01

In Stock

The Connectix Enhanced Category 5 loaded faceplate consists of 1 or two modules in loaded in a singlegang faceplate or 4 modules loaded in a doublegang faceplate. With their rounded corners these loaded faceplates fit perfectly onto our Office style back boxes

Ready assembled outlet, ready for installation.

Exceeds Enhanced Category 5 specification when used alongside our cable and patch panels

Module Details

The Connectix Enhanced Category 5 Compact Module is designed to provide one of the shallowest wall outlets on the market. They are the ideal solution wherever back-box depth is a problem.

The attractive high gloss finish and easy to use labelling system are identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.

Enhanced Category 5 Compact Modules can be fitted into single or dual gang faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.

The modules offer extended PowerSum characteristics and exceed the ANSI/TIA-568-C specifications. When combined with Connectix Enhanced Category 5 Patch Panels and FTP Cable the link will perform well in excess of the Enhanced Category 5 Specification.

Features:

  • Suitable for Gigabit Ethernet applications
  • Shallow design requires minimal back-box depth
  • Interchangeable with other Euro modules and 1⁄4 blanks
  • Industry standard IDCs
  • Individually QA tested
  • Also available as PABX Secondary or Full Master Voice Module
