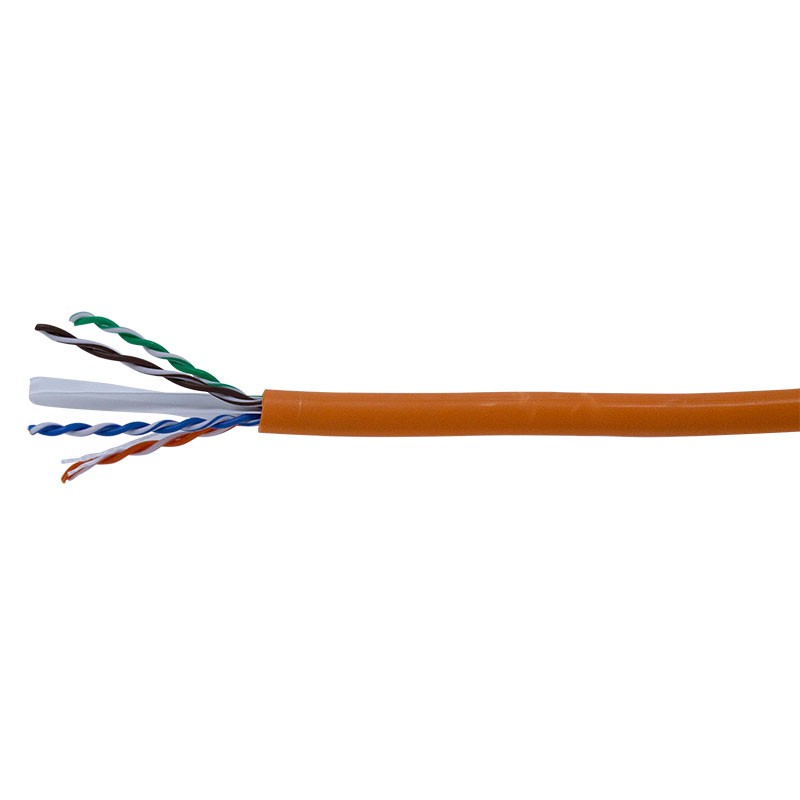

Cat 6 U/UTP LSZH B2ca Solid Cable
305m Orange B2ca Cat 6 Cable
Category 6 Unshielded Twisted Pair Cable is designed for use in next generation data communications networks, and will comfortably support present applications including Gigabit Ethernet.
The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.
Connectix Category 6 UTP Solid Cable offers the performance characteristics required by the ever-present Category 6 Standard. When used in conjunction with Connectix Category 6 Modules and Patch Panels the user will get a link performance exceeding Category 6 requirements. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.
Features & Benefits
The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.
Connectix Category 6 UTP Solid Cable offers the performance characteristics required by the ever-present Category 6 Standard. When used in conjunction with Connectix Category 6 Modules and Patch Panels the user will get a link performance exceeding Category 6 requirements. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.
Features & Benefits
- Category 6 performance
- Supplied metre marked for easy installation
- Performance exceeding Category 6 Specifications
001-003-005-68
Data sheet
- Construction
- 4 twisted pairs cabled together with spine
- Operating temperature (T-T)
- -20˚C to +70˚C
- Conforms to
- IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/ANSI Cenelec EN50174
- Fire Rating
- B2ca s1a,d0,a1
- Inner Conductor
- 0.53mm (+/-0.01mm) plain copper
- Insulation
- High density polyethylene
- Colour Code
- Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White
- Jacket
- FR-LSZH
- Overall Diameter
- 6.1 +/- 0.3 mm
- Min. Bending Radius Installed
- 24.5mm
- DC Resistance
- Max 2.5%
- Velocity Ratio
- 69%
- Installation temperature (T-T)
- 0˚C to +50˚C
- Sheath
- FR-LSZH
- Capacitance Unbalance (pair to ground)
- < 330 pF/100 m
- Insulation Resistance
- > 5000 MΩ*Km
- Installation Temperature Range
- 0˚C to +50˚C
- RAL Colour
- Orange - 2004
- Characteristic Impedance @1-250 MHz
- 100 +/- 15 Ω
- Operating Temperature Range
- -20˚C to +70˚C
- Dielectric Strength
- 2500V DC 2s
