Cat6 UTP RJ45 Modules with Faceplate
Previous Next

Cat6 UTP RJ45 Modules with Faceplate

Faceplates pre-loaded with Cat6 UTP Modules. Available with 1 or 2 or 4 modules

More info

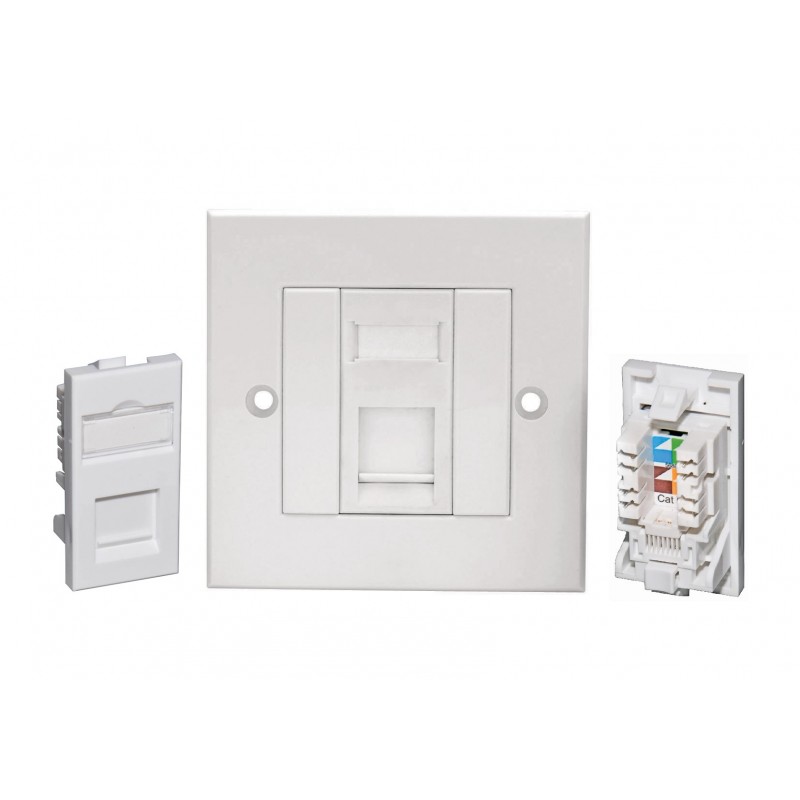

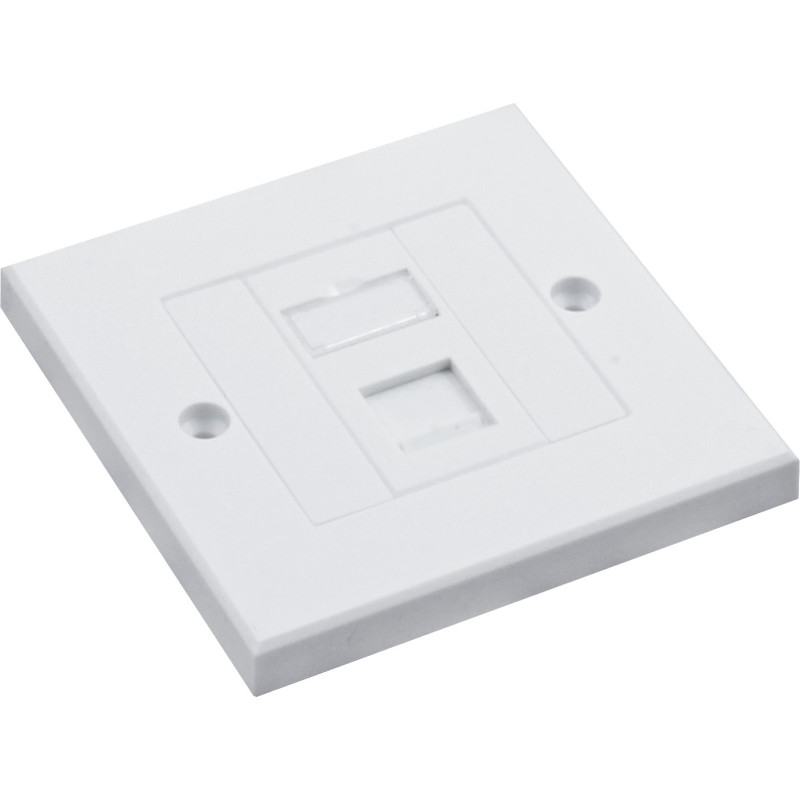

The Connectix Enhanced Category 6 way loaded faceplate consists of 1 or two modules in loaded in a singlegang faceplate or 4 modules loaded in a doublegang faceplate.

  • Ready assembled outlet, ready for installation.
  • Exceeds Enhanced Cat6 specification when used alongside our cable and patch panels

Details:

Module Details

The Connectix Category 6 Compact Module is designed to provide one of the shallowest wall outlets on the market. They are the ideal solution wherever back-box depth is a problem.

The attractive high gloss finish and easy to use labelling system is identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.

Category 6 compact modules can be fitted into single or dual gang Euro faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.

Connectix Category 6 Modules are fully compliant with the ANSI/TIA Category 6 Standard. When used in conjunction with Connectix Category 6 Patch Panels and UTP Cable the user will get a link performance exceeding the Category 6 requirements.

Features:

  • Suitable for Gigabit Ethernet applications
  • Shallow design requires minimal back-box depth
  • Interchangeable with all other Euro modules and quarter blanks
  • Fits all standard Euro faceplates
  • Individually QA tested



Specification:

  • Width - 25mm
  • Depth - 21mm
  • Height - 50mm
  • Back-box Depth - Minimum 15mm recommended
  • Material - Polycarbonate/ABS thermoplastic resin, with grade UL94 V0 at 1.5mm flame retardency
  • Finish - High gloss
  • IDC Labels - Individual colour coded to T568B
  • IDC Blocks - 4 way industry standard IDC blocks
  • Conforms to - ANSI/TIA-568-C Category 6 Specification
