Cat 6a F/FTP B2ca Solid Cable

Cat 6a F/FTP B2ca Solid Cable

Supplied in 305m box

001-003-003-95

In Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

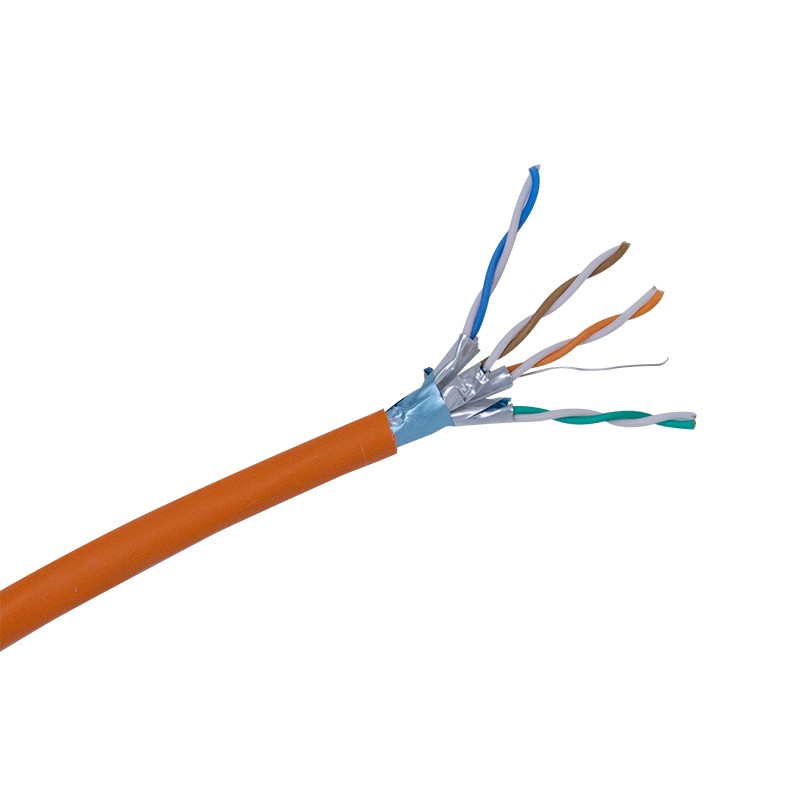

Connectix Category 6A F/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.

The cable consists of 4 screened pairs, drain wire and additional outer foil. It helps to alleviate the problems of NEXT and alien crosstalk. The sheath is a Low Smoke Zero Halogen (LSZH) material, as specified in many public buildings. This cable has a Euroclass rating of B2ca, so ideal where BS6701 compliance is required.
Supplied  in 305m boxes
Conforms toISO/IEC 11801;EN 50173-1, ANSI/TIA 568-C Category 6A, IEEE802.3an 10-Gigabit Ethernet
DC Resistance< 9.38 Ω /100 m
ConductorSolid - Bare copper wire (AWG 23)
Drain WireTinned copper
Insulation MaterialSkin-foam-skin PE Ø 1.45 mm
Insulation Diameter1.330 +/- 0.05mm
Screening MaterialAlu / Mylar
Sheath Thickness0.65+/-0.1mm
Sheath External OD7.6 +/- 0.5mm
Sheath SurfaceClean
Sheath ColourOrange - RAL 2004
Sheath MaterialLSZH(Complies RoHs)
Core Colour1. White/Blue, 2. White/Orange, 3. White/Green, 4.White/Brown
Surface Printing ColourBlack
Surface Printing Letter Height3.0 +/-0.3mm
Supplied in305m Box
DC Resistance Unbalance max5%
Capacitance Unbalance (pair to ground)< 330 pF/100 m
Reaction to FireB2ca,s1a,d1,a1
