Cat 7a S/FTP B2ca Solid Cable 500m Drum
001-004-008-10
More info
Connectix Category 7a S/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.

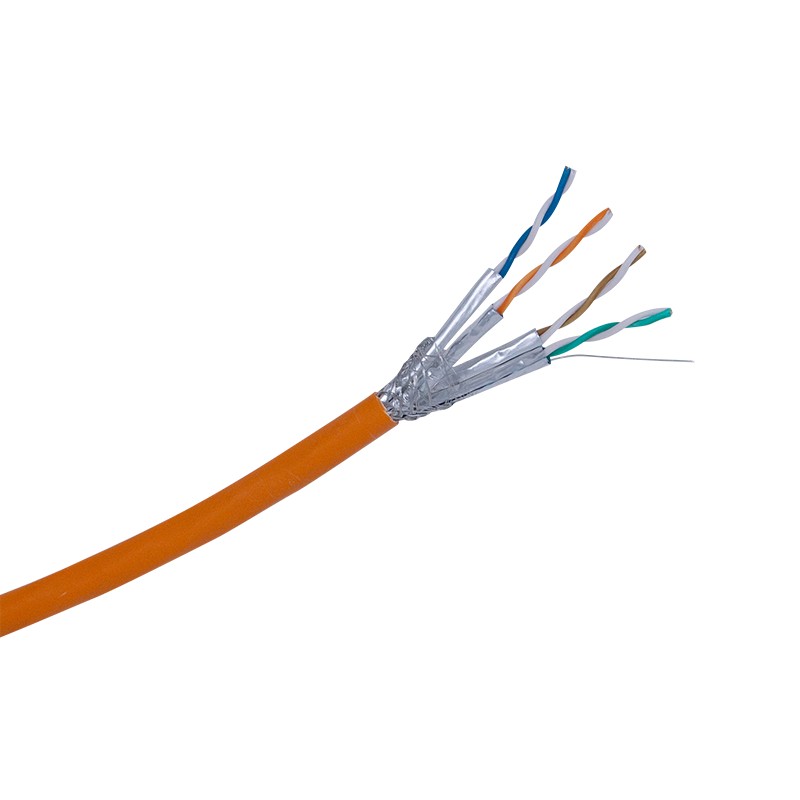

The cable consists of 4 screened pairs, drain wire and additional outer foil. It helps to alleviate the problems of NEXT and alien crosstalk. The sheath is a Low Smoke Zero Halogen (LSZH) material, as specified in many public buildings. It has a euroclass rating of Bca, making it the ideal choice when BS6701 compliance is a requirement Delivered on 500m Drums.
Features & Benefits
The cable consists of 4 screened pairs, drain wire and additional outer foil. It helps to alleviate the problems of NEXT and alien crosstalk. The sheath is a Low Smoke Zero Halogen (LSZH) material, as specified in many public buildings. It has a euroclass rating of Bca, making it the ideal choice when BS6701 compliance is a requirement Delivered on 500m Drums.
Features & Benefits
- Suitable for structured premises cabling.
- For transmission of digital and analogue voice and data signals.
- Especially suitable for all Class FA applications.
- ISDN, Ethernet 10 Base-T, Fast Ethernet 100 Base-T, Gigabit Ethernet 1000 Base-T, 10G Base-T. (IEEE 802.3).
- Token Ring4/16Mbit/s, TP-PMD/TP/DDI 125Mbit/s, ATM 155Mbit/s. (IEEE 802.5).
- Euroclass B2ca
Features
| Conforms to | IANSI/TIA 568C.2, ISO/IEC 11801 |
| Fire Rating | B2ca,s1a,d1,a1 |
| DC Resistance | < 9.38 Ω /100 m |
| Conductor | Solid - Bare copper wire (AWG 23) |
| Drain Wire | Tinned copper |
| Insulation Material | Skin-foam-skin PE Ø 1.45 mm |
| Insulation Diameter | 1.330 +/- 0.05mm |
| Sheath Thickness | 0.55+/-0.1mm |
| Sheath External OD | 7.8 +/- 0.5mm |
| Sheath Surface | Clean |
| Sheath Colour | Orange - RAL 2008 |
| Sheath Material | LSZH(Complies RoHs) |
| Core Colour | 1. White/Blue, 2. White/Orange, 3. White/Green, 4.White/Brown |
| Surface Printing Colour | Black |
| Surface Printing Letter Height | 3.0 +/-0.3mm |
| Supplied in | 500m Drum |
| DC Resistance Unbalance max | 2% |
| Capacitance Unbalance (pair to ground) | < 330 pF/100 m |
| Inner Screening Material | Alu / Mylar |
| Outer Screening Material | Aluminium-Magnesium Alloy 0.12mm |
