47u 800mm x 1000mm 3 Compartment CoLocation Server Rack

47u 800mm x 1000mm 3 Compartment CoLocation Server Rack

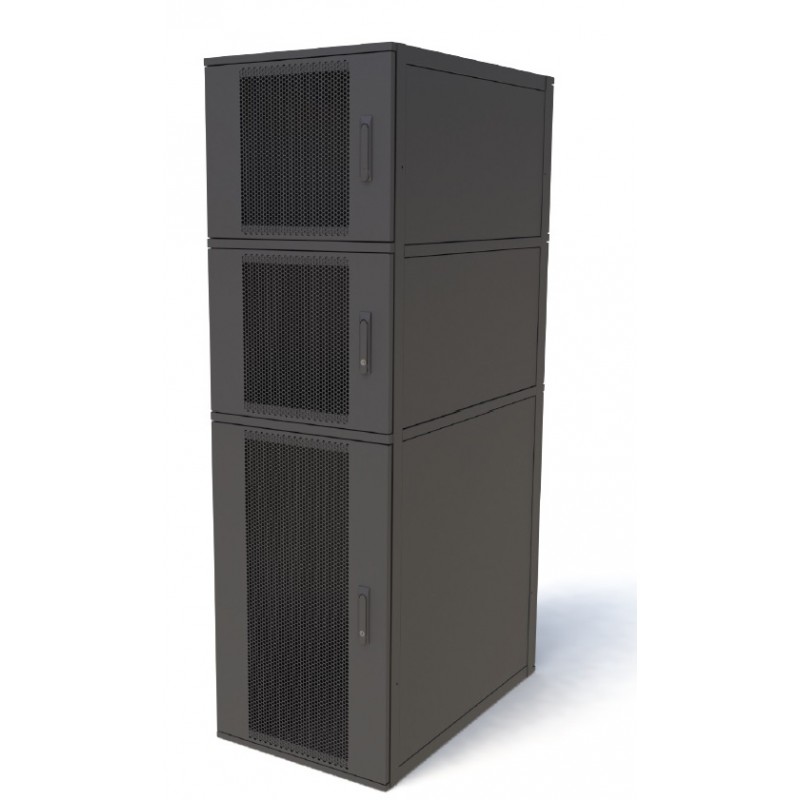

3 Compartment 47u Co-Location Server Cabinet for Data Centres

CL47-810-4

Made to order, 8 - 10 Days

CCS CoLocation Server Racks provide a perfect solution for your Data Centre Rack & Cabinet requirements.

Each compartment is securely segregated and uniquely keyed for increased security, with cable entry top and bottom. The racks are load rated to 1000kg (evenly distributed)

Unless otherwise requested, compartments are divided as: 2 x 10u & 1 x 21u

Easy baying is possible with an optional baying kit, allowing these Co-Location Server Racks to be installed in high density Data Centre Environments.

Details:

Features:

  • Welded frame construction with 1000kgs weight loading
  • 2 x lockable solid steel side panels
  • 2 x pairs of adjustable 19" posts in each compartment
  • 1 x pair of mesh doors per compartment, each pair with it's own unique key number
  • Vented colo partition panel segregating each compartment
  • All cabinets have top & bottom cable access
  • Supplied with transit castors, screw jack feet & earthing kit
  • Unless otherwise requested, compartments are divided as: 2 x 10u & 1 x 21u
Please note compartments are not divided Equally with this cabinet.
Cable EntryTop & Bottom
Depth1000mm
Width800mm
