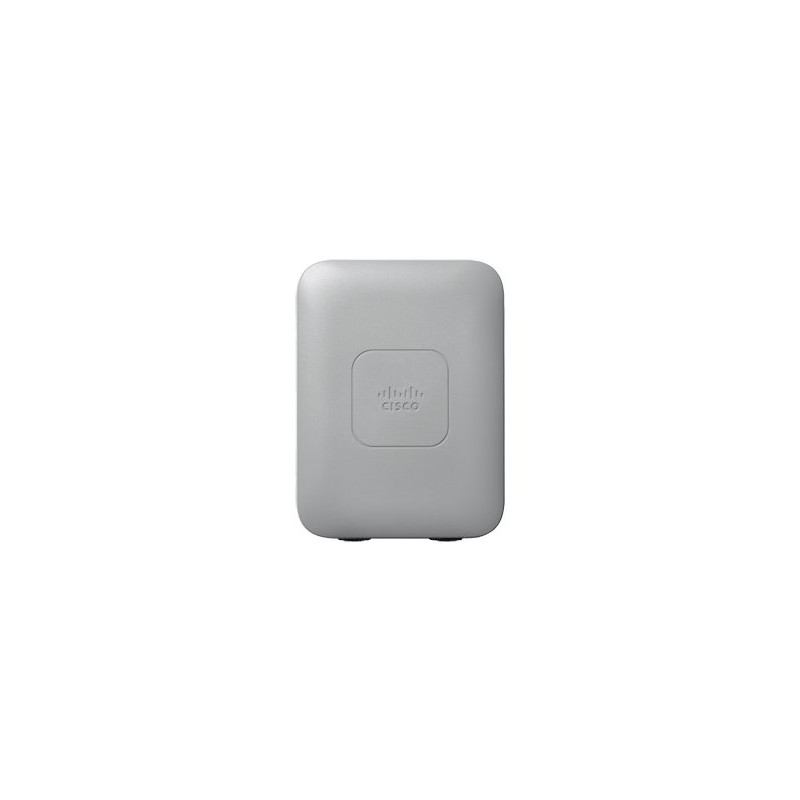

Cisco Aironet 1542I
Cisco Aironet 1542I Cisco Aironet 1542I

Cisco Aironet 1542I

Dual-band 802.11a/g/n/ac, Wave 2, internal omni antennas, R regulatory domain

AIR-AP1542I-R-K9

Stock Due 06-11-2024

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Cisco® Aironet® 1540 Series outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily.



The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.



Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today’s bandwidth-hungry devices.
CertificationUL60950\nCAN/CSA-C22.2 No. 60950\nIEC 60950\nEN 60950\nEN61000-4-5\nEN61000-4-4\nEN61000-4-3\nEN61000-4-2\nFCC\nRSS-210\nRSS-102\nAS/NZS 4268.2003\nARIB-STD 66 (Japan) \nARIB-STD T71 (Japan) \nEN 300 328\nEN 301 893\nICES-003 \nEN 301 489-1, -17
Depth150 mm
Ethernet LAN (RJ-45) ports1
Height61 mm
International Protection (IP) codeIP67
Operating temperature (T-T)-40 - 65 °C
Weight1250 g
Width200 mm
Product colourGrey
Maximum data transfer rate (5 GHz)867 Mbit/s
Antenna direction typeomni-directional
Antenna featuresIntegrated antenna

air-ap1542i-r-k9.pdf

Cisco Aironet 1542I Data Sheet

Download (661.69k)
