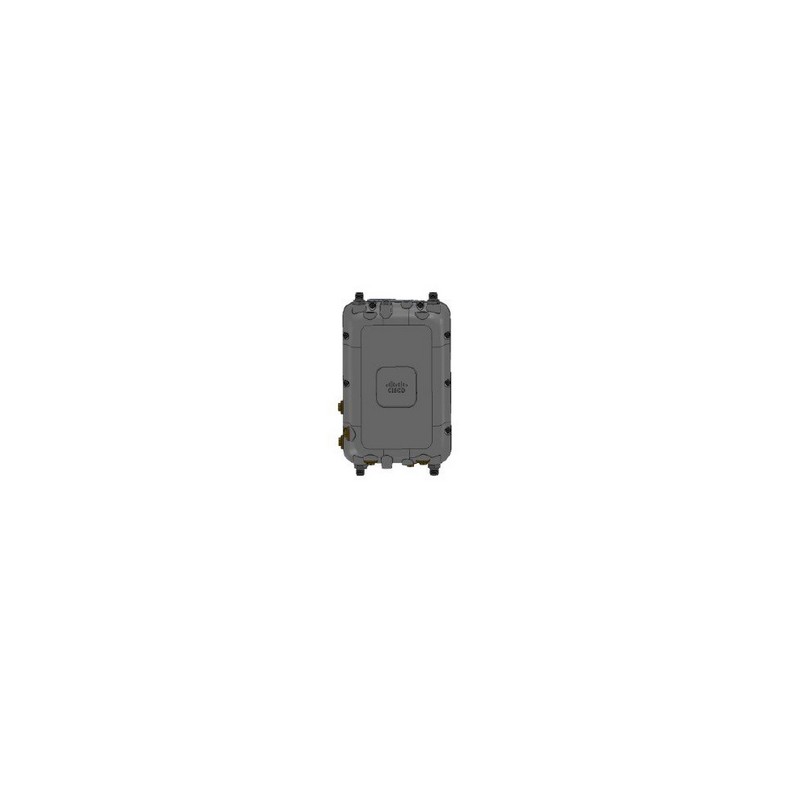

Cisco Aironet 1572EAC
Cisco Aironet 1572EAC Cisco Aironet 1572EAC Cisco Aironet 1572EAC

Cisco Aironet 1572EAC

2.4/5 GHz, Regulatory Domain Z, External Antennas, AC

AIR-AP1572EAC-Z-K9

Stock Due 10-11-2022

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Cisco Aironet 1570 Series Outdoor Access Point (hereafter called the access point or AP) is a wireless outdoor access point which is designed for use in a variety of network configurations. The access point can be configured, monitored, and operated through a Cisco wireless LAN controller (hereafter called a controller). The controllers use a browser-based management system, a command-line interface (CLI), or the Cisco Prime Infrastructure (PI) network management system to manage the controller and the associated access points. The access point supports hardware-based advanced encryption standard (AES) encryption between wireless nodes to provide end-to-end security. The access point can also be deployed in an autonomous mode and be configured via the CLI.
CertificationUL/cUL 60950\nIEC 60950\nEN 60950\nARIB-STD 66\nARIB-STD T71\nANSI/IEEE C62.41\nEN61000-4-5\nEN61000-4-4\nEN61000-4-3\nEN61000-4-2\nFCC Part 15.247, 15.407\nRSS-210\nRSS-102\nAS/NZS 4268.2003\nEN 300 328\nEN 301 893\nICES-003\nEN 301 489-1, -17
Depth160 mm
Ethernet LAN (RJ-45) ports1
Height300 mm
International Protection (IP) codeIP67
Operating temperature (T-T)-40 - 65 °C
Weight6100 g
Width201 mm
Product colourBlack
Antenna featuresDetachable antenna

air-ap1572eac-z-k9.pdf

Cisco Aironet 1572EAC Data Sheet

Download (985.47k)
