Cisco Aironet 1815w
Cisco Aironet 1815w Cisco Aironet 1815w Cisco Aironet 1815w

Cisco Aironet 1815w

Dual-band, controller-based 802.11a/g/n/ac, Wave 2, w / Bluetooth 4.1

AIR-AP1815W-E-K9

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

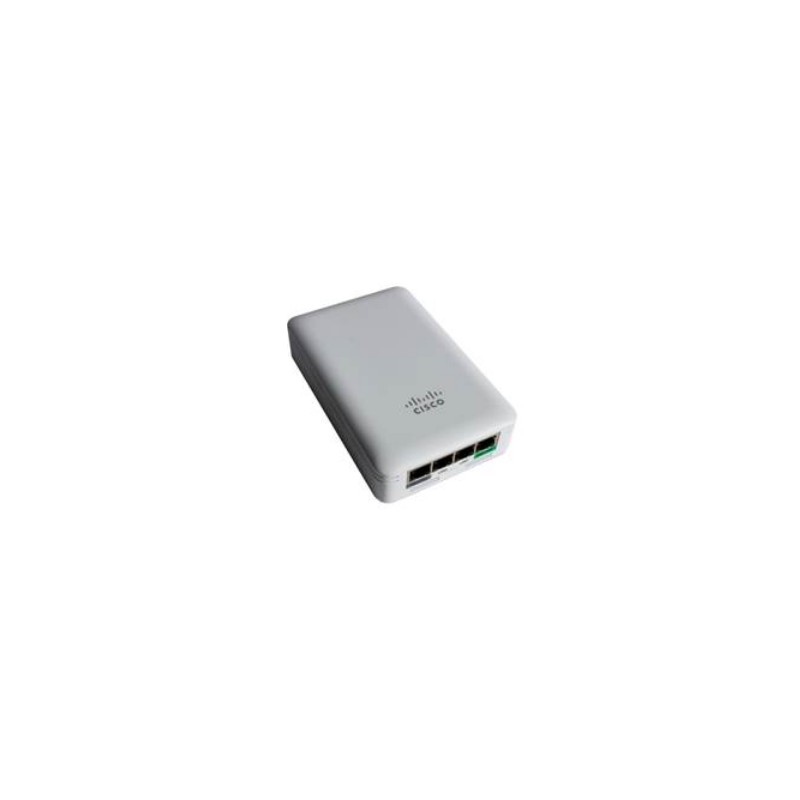

The Cisco® Aironet® 1815w Access Point (Figure 1) offers a compact, wall plate–mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.



Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of ownership.



By adhering to the 802.11ac Wave 2 standard, the 1815w provides a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.



In recent years corporate users have increasingly preferred wireless access as their form of network connectivity, due to its convenience. With this shift, there is an expectation that wireless should not slow down users’ day-to-day activities, but should enable a high-performance experience while allowing users to move about freely. The 1815w delivers industry-leading performance with highly secure and reliable wireless connections that provide a robust, mobile end-user experience.
CertificationUL 60950-1\nCAN/CSA-C22.2 No. 60950-1\nUL 2043\nIEC 60950-1\nEN 60950-1 \nFCC Part 15.247, 15.407\nRSS-247 (Canada)\nEN 300.328, EN 301.893 (Europe)\nARIB-STD 66 (Japan)\nARIB-STD T71 (Japan)\nEMI (Class B)\nFCC Part 15.107 / 15.109\nICES-003 (Canada)\nVC
Depth140 mm
Ethernet LAN (RJ-45) ports3
Height31.5 mm
Operating temperature (T-T)0 - 40 °C
Weight280 g
Width89 mm
Product colourWhite
Maximum data transfer rate (5 GHz)867 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)Y
Antenna featuresIntegrated antenna

air-ap1815w-e-k9.pdf

Cisco Aironet 1815w Data Sheet

Download (604.31k)
