D-Link DCS-9500T security camera IP security camera Indoor Wall 1920 x 1080 pixels
  • D-Link DCS-9500T security camera IP security camera Indoor Wall 1920 x 1080 pixels
  • D-Link DCS-9500T security camera IP security camera Indoor Wall 1920 x 1080 pixels
  • D-Link DCS-9500T security camera IP security camera Indoor Wall 1920 x 1080 pixels
  • D-Link DCS-9500T security camera IP security camera Indoor Wall 1920 x 1080 pixels

D-Link DCS-9500T

1/2.8’’ CMOS, F1.6-2.9 , 2.7-12mm, 1920x1080, 30 fps, IP66, 136x182x220 mm
Out of Stock
Reference: DCS-9500T
Group Temperature Screening Camera Kit

Identify people with fevers precisely and accurately by using advanced infrared thermal imaging technology from D-Link. Inspect flowing crowds in large areas, and distinguish those that have an elevated temperature from those that don’t. Raise the alarm immediately when someone with a fever is detected in real-time, with ±0.3°C medical-grade accuracy.



Find the fever in the crowd.

The DCS-9500T is a complete solution that comes with a thermographic camera, blackbody calibrator and comprehensive software suite which includes archive management, temp data reporting, statistic reporting and extensive analysis according to age/gender/time/type as well as system monitoring in real-time.



Multiperson detection

Screen up to 30 people at the same time, with a rapid response time of less than 30 ms.



AI Algorithm

AI‑based Facial Detection and Recognition3 is included free in our comprehensive management software which does everything needed for temperature monitoring and audible alarms.



Accuracy = ±0.3°C

With up to 17 colour image modes, thermal detection with overtemperature alarm, disk alarm and digital I/O alarm.



Sharper visual and thermal imaging.

Utilise the uncooled IRFPA microbolometer high-resolution thermal sensor and digital signal transmissions to deliver superior, razor-sharp thermal imaging video footage in real-time.



AI Facial Recognition with Early Warning Management.

Provides the time and location of the over-temperature target immediately, which solves the problem of unconfirmed over-temperature target information. At the same time, the camera provides materials for further supervision and sends a report for useful data-analysis.



AI-based Facial Recognition can be used in tandem with thermal imaging to grant building access, and so doors or gates can open when a person is recognised and without an elevated temperature.



Check up to 30 faces at the same time, within 30ms.

This solution provides fast and accurate skin-surface temperature detection1 for up to 30 people simultaneously, with a ±0.3°C precision, so that you can be alerted instantly to intercept and take appropriate action.



Rapid temperature checks of moving crowds, without the wait.

People moving shouldn’t get in the way of protecting your business, nor should they be forced to queue up. With the help of AI-facial recognition, you can scan up to 30 faces in less than 30ms to check their temperatures as they move.



Everything you need to get started.

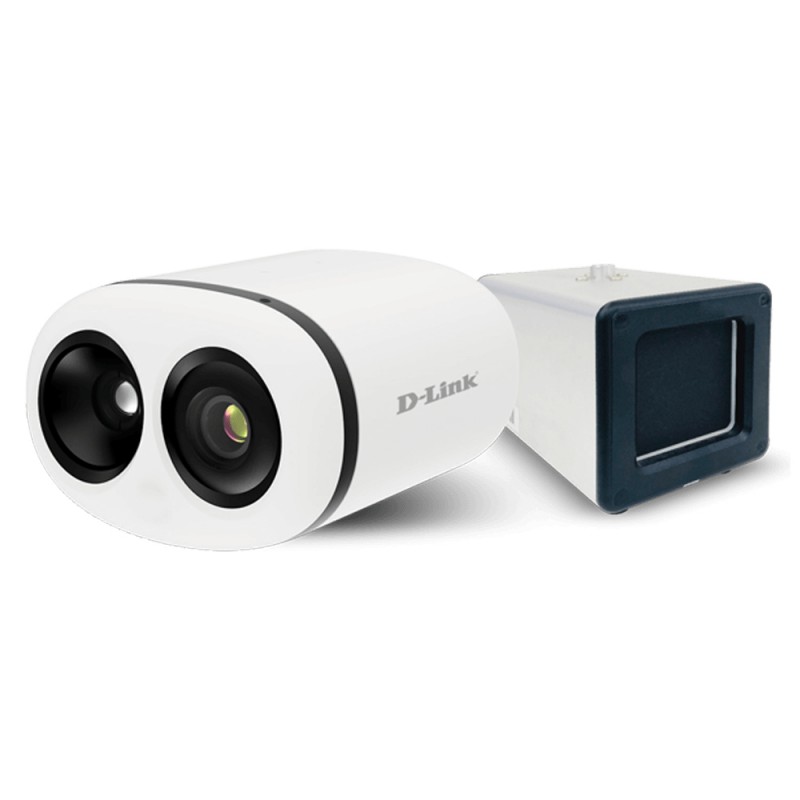

The DCS-9500T all-in-one fever screening kit has everything you need to start measuring the temperatures of groups of people simultaneously with precision. It includes the thermographic camera, blackbody calibrator, two wall mount brackets, and free management software with AI capabilities. No additional hardware or software required.



Watch the video

Diagram showing an example deployment of the DCS-9500T Group Temperature Screening Camera solution
D-Link
DCS-9500T

Data sheet

Bluetooth
N
Certification
CE, CE LVD, FCC
Connectivity technology
Wired
Depth
220 mm
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Frame rate
30 fps
Height
136 mm
International Protection (IP) code
IP66
Maximum resolution
1920 x 1080 pixels
Minimum illumination
0.15 lx
Mounting type
Wall
Operating temperature (T-T)
-30 - 60 °C
Optical sensor size
1/2.8 "
Placement supported
Indoor
Power source type
PoE
Sensor type
CMOS
Supported network protocols
IPv6, IPv4, TCP/IP, UDP, HTTP/HTTPS, RTP / RTSP/ RTCP, ONVIF
Video compression formats
H.264,H.265,M-JPEG
Viewing angle, horizontal
105 °
Weight
9500 g
Wi-Fi
No
Wide Dynamic Range (WDR)
Y
Width
182 mm
Number of cameras
1
Privacy masking
Y
Product colour
White
Built-in HDD
N
Focal length range
2.7 - 12 mm
Thermal module
Y
Thermal sensitivity (NETD)
40 mK
Field of view (FOV) angle (thermal module)
46 x 35 °
Effective sensor resolution (thermal module)
400 x 300 pixels
Fixed focal length (thermal module)
8 mm
Aperture number (thermal module)
1
Noise reduction technology
3D noise reduction
Highlight Compensation (HLC)
Y

Specific References

EAN13
0790069455827

Download

dcs-9500t.pdf

D-Link DCS-9500T Data Sheet

Download (617.04KB)
