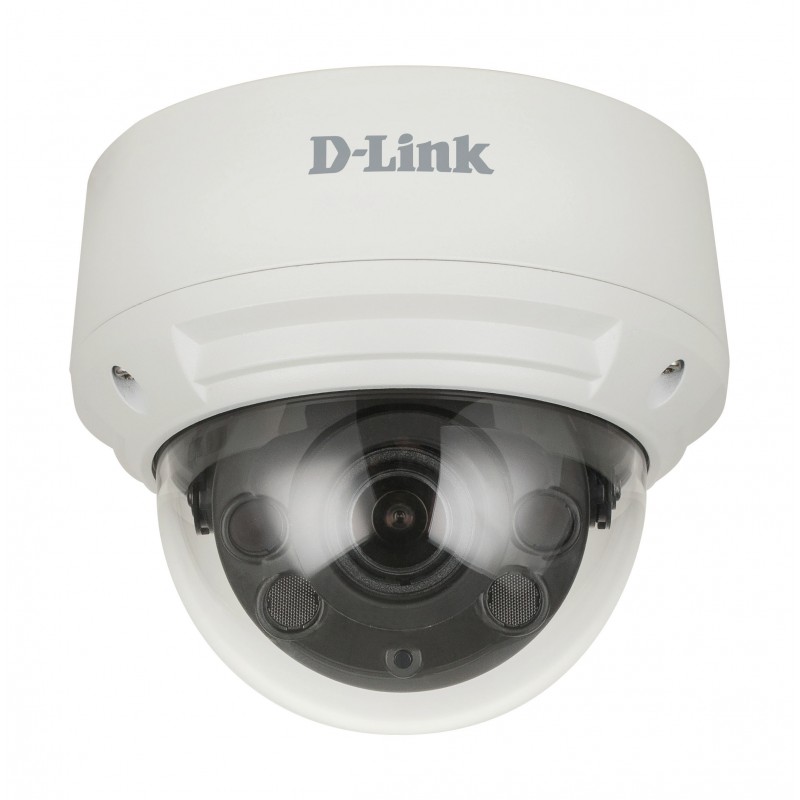

D-Link 8 Megapixel H.265 Outdoor Dome Camera DCS‑4618EK
8 Megapixel H.265 Outdoor Dome Camera DCS‑4618EK
Professional Surveillance in Vandal‑proof 4K Ultra High Definition
An 8 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.
4K Ultra HD Resolution
8-megapixel sensor with 4K Ultra HD resolution up to 3840 x 2160 for detailed footage
Vandal-proof
IK10-rated housing for protection against physical impacts
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
PoE Capable
Supports 802.3af PoE for flexible and simple installation
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or NAS
Wide Dynamic Range with LowLight+
Improved image quality in high-contrast conditions with WDR & optimised for low-light environments
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 3840 x 2160 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4618EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.
Viewing Angles
(H) 108.6° - 35°
(V) 56° - 21°
(D) 125° - 42°
High Quality Lens
Motorised varifocal 3.3 - 12 mm lens with an F1.4 aperture
Versatile Monitoring in All Environments
IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.
Vandal‑proof
The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4618EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
DCS-4618EK
Data sheet
- Bluetooth
- N
- Certification
- CE, FCC, RCM
- Connectivity technology
- Wired
- Day/night mode
- Y
- DC output voltage
- 12
- Depth
- 130 mm
- Ethernet LAN
- Y
- Ethernet LAN (RJ-45) ports
- 1
- Form factor
- dome
- Frame rate
- 20 fps
- Height
- 112 mm
- International Protection (IP) code
- IP66
- Maximum resolution
- 3840 x 2160 pixels
- Mounting type
- Ceiling
- Night vision
- Y
- Night vision distance
- 30 m
- Operating temperature (T-T)
- -30 - 50 °C
- Optical sensor size
- 1/2.5 "
- Placement supported
- Outdoor
- Power source type
- DC,PoE
- Sensor type
- CMOS
- Supported network protocols
- IPv4, HTTP/HTTPS,RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP, Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3
- Total megapixels
- 8 MP
- Video compression formats
- H.264,H.265,M-JPEG
- Viewing angle, diagonal
- 125 °
- Viewing angle, horizontal
- 108.6 °
- Viewing angle, vertical
- 56 °
- Weight
- 750 g
- Wi-Fi
- No
- Wide Dynamic Range (WDR)
- Y
- Width
- 130 mm
- Number of cameras
- 1
- Privacy masking
- Y
- Product colour
- White
- Number of sensors
- 1
- Built-in HDD
- N
- Camera pan control
- Y
- Camera tilt control
- Y
- Focal length range
- 3.3 - 12 mm
- PTZ control
- Y
- Noise reduction technology
- 3D noise reduction
- Video recording
- Y
Specific References
- EAN13
- 0790069456572
