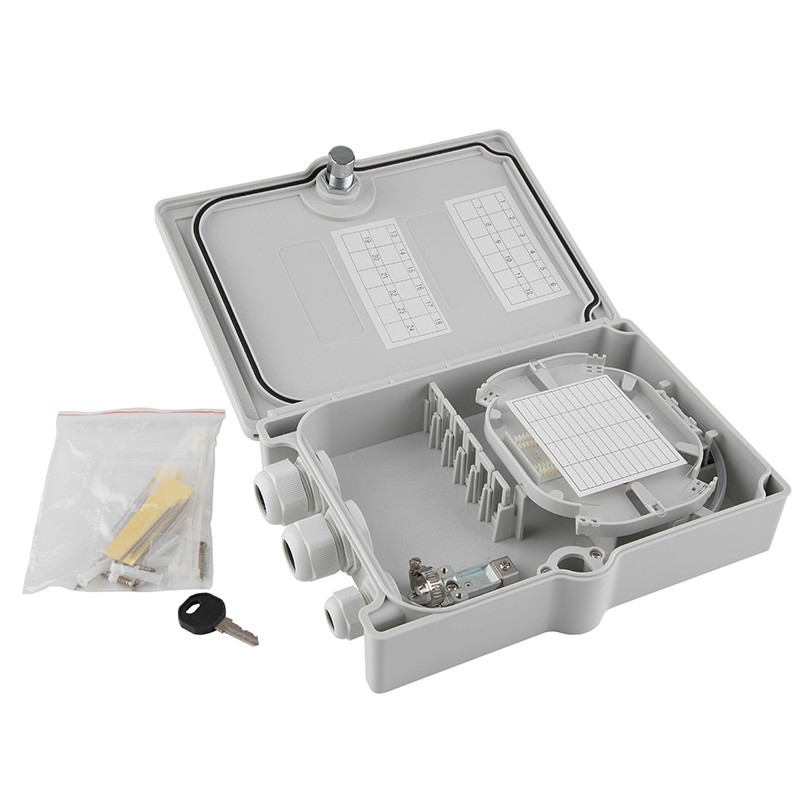

12 Fibre Internal / External Break Out Box

12 Fibre Internal/External Break Out Box

Lockable IP65 distribution box
In Stock
Reference: 009-008-000-15
This lockable IP65 distribution box offers the ability to terminate 12 fibres housed in a robust ABS enclosure for indoor and outdoor applications.

With the ability to use a full array of adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi-functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.

In addition to the array of adaptors the enclosure also offers up to 12 exit points for patching cables and a standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armoured cable. Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.

Features and Benefits
  • Up to 12 fibres
  • Removable splice tray for easy installation
  • Multiple adaptor options available
  • 6 adapter positions
  • Accepts loose tube, distribution and pre-terminated cables
  • Integrated bend radius protection
  • Sealing glands for up to 12 cables
  • Removable door for ease of installation
  • Supplied with 12 heat shrink splice protectors
  • Supplied with transit tubing
  • Supplied with wall fixings and tie wraps

Applications
  • Data centres, premise installations, telecommunication networks
  • Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  • Data communication and telecommunication networks
  • Indoor applications
    FibreFox
    009-008-000-15

    Data sheet

    Cable Entry
    20 mm x1
    Depth
    61mm
    Height
    258mm
    Material
    ABS
    Width
    186mm
    Number of Ports
    6
    Packed weight
    875g
    Packaged dimensions
    275mm x 197mm x 65mm
    IP rating
    IP65S
    Number of fibres
    12
    Cable exit
    20 mm x2
