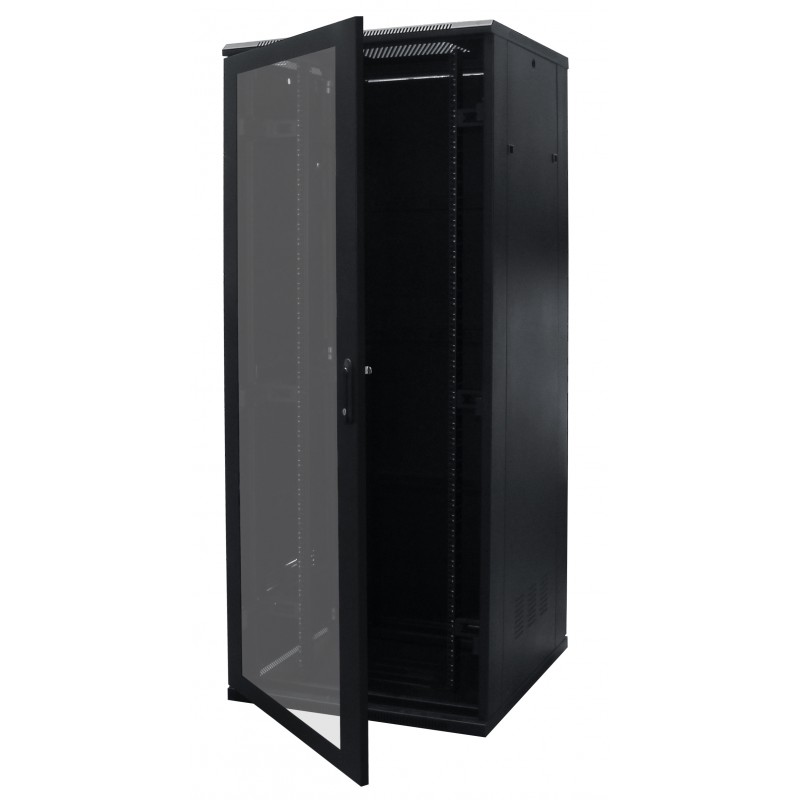

RackyRax 800mm x 800mm Data Cabinet

800mm Wide x 800mm Deep Floor Standing Data Cabinet

More info

RackyRax 19” Data Cabinets combine all the features of a premium data cabinet including the aesthetically pleasing design, without the price-point to match.

The Data Cabinets are available in various configurations and are supplied fully assembled or flat packed. Each cabinet utilises a ventilated top and four 19” adjustable front and rear mounting posts. The cabinets feature lift-off sides and a lockable door for maximum access to the internal equipment, with cable access in the base for convenient routing of network cables. The side panels can be fitted with cabinet locks. The cabinet frameworks are finished in black with a Perspex lockable front door

Each Cabinet is assembled in the UK using the highest quality components and boast an impressive load rating of up to 800kg (evenly distributed). The RackyRax range of Data Cabinets has been designed ensure easy installation and maintenance

Cable access can be made through removable gland plates in the roof or through the open base.

Each RackyRax Cabinet is supplied fully assembled and ready to go – We also offer flat pack if you require it.


  • 800kg loading capacity (evenly distributed)
  • Lockable/removable perspex front door with steel surround
  • Lockable/removable steel rear door
  • Removable steel side panels
  • Adjustable 19” mounting profiles front and rear
  • Optional roof mounted fan
  • Removable gland plates top and bottom for cable access
  • Flat pack option available


A full range of accessories are available to complement the cabinet including castors, shelves and vertical cable trays

Dimensions By U Height

U Height Size (HxWxD) Weight
12U 635x800x800 mm 28.2 Kg
18U 902x800x800 mm 42.3 kg
21U 1035x800x800 mm 49.3 kg
24U 1168x800x800 mm 56.4 Kg
27U 1302x800x800 mm 63.4 Kg
39U 1835x800x800 mm 91.6 Kg
42U 1968x800x800 mm 98.8 Kg
45U 2103x800x800 mm 105.7 Kg


Cable Entry Top & Bottom


Data Sheet
