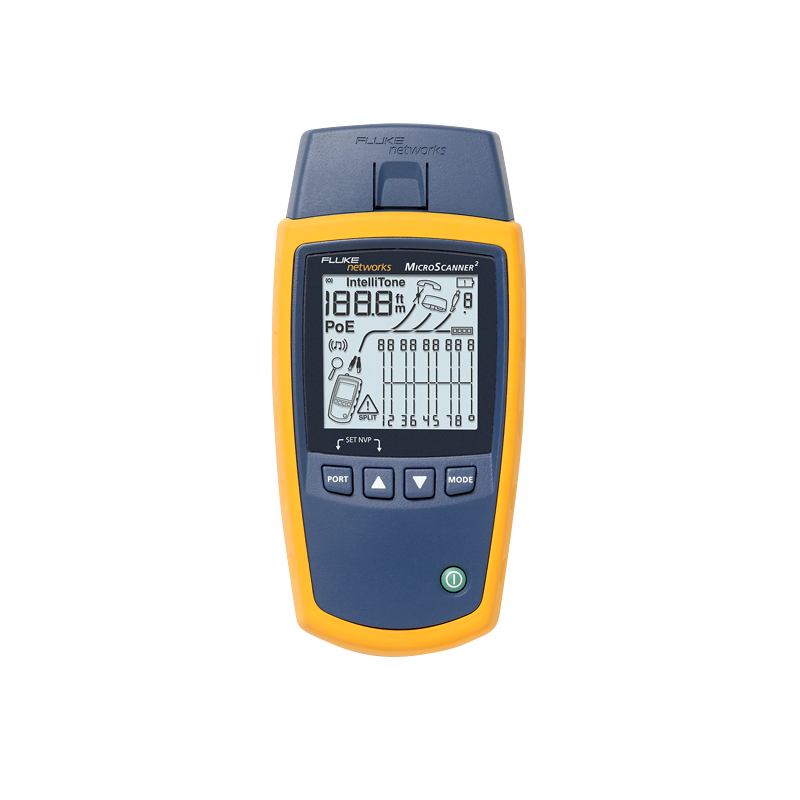

Fluke MicroScanner2 Cable Verifier

Download Fluke Networks MicroScanner2 PDF


Download MicroScanner PDF


Download Technical Drawing

  • Revolutionary Interface – graphical wiremap, length, cable ID, and distance to fault displayed on one screen
  • Multimedia Support – tests all common media types including RJ11, RJ45, Coax, with no need for adapters
  • IntelliTone Toning – trace virtually any cable or wire pair with IntelliTone digital and analog toning
  • VDV Service Detection – verifies today’s media services, including 10/100/1000 Ethernet, POTS, and PoE
  • Rugged Housing – integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
  • Oversized Display – large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet


Reduce test time and user error

Yesterday’s cable verification testers force users to toggle between different modes (up to four) to view all test results. This not only slows the test process, but also causes
user frustration and error. MicroScanner2 has defied this convention by displaying key test results – wiremap, pair lengths, distance to fault, cable ID, and far-end devices – all on one screen.

Eliminate awkward test adapters
Tired of losing or breaking all the adapters needed for testing the various voice, data, and video media types? MicroScanner2 makes these adapters things of the past with builtin RJ11, RJ45, and coax support. Both the main unit and the far-end identifiers can be used to test telephone jacks, Ethernet jacks, and CATV outlets right out of the box.

Rule out service problems fast
Today’s communications technicians have more problems to deal with than just the cabling. They have to rule out a whole host of cable and service issues before  determining the cause of a connectivity problem. Is there telephone voltage? What’s the polarity? Is there a switch at the far end? Is PoE available? MicroScanner2 gives technicians high power vision to verify today’s most common voice, data, and video services.

Locate elusive cables in seconds
MicroScanner2 features built-in IntelliTone digital and analog toning to precisely locate virtually any cable or wire pair, regardless of work environment. Use digital mode to locate high-grade data cabling (Cat 5e/6/6a) in bundles, or at switches, patch panels, or wall outlets. Or, use analog mode on voice-grade cabling (Cat 3 and below), as well as coax, security/alarm, and speaker wiring.

Repair or replace tools less often
With all the abuse you put your tools through, you can’t afford for them to be delicate. MicroScanner2 features a rubber wrap-around holster that makes it the right tool for even the toughest jobs. Toss it into your toolbox. Drop it from a ladder. It can handle it. Plus, it now comes standard with a vinyl carry pouch for enhanced protection and convenience.

Professional Kit Includes
MicroScanner2 Cable Verifier with main wiremap adapter, remote identifiers #2-7, IntelliTone Pro 200 probe, shielded twisted-pair RJ45 patch cord, RJ11 patch cord, clip-set RJ45 to 8 alligator clip bare wire adapter, F Coax push on patch cord, accessory soft pouch, (2) AA alkaline batteries, (1) 9V alkaline battery, MicroScanner2 Getting Started Guide, IntelliTone Pro Getting Started Guide, packaged in a deluxe Fluke Networks carry case.


Altitude 4000 m; Storage: 12000 m
Display Monochrome liquid crystal display (LCD) with backlight
Power source Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries, Battery life: 20 hours of typical use, Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
Safety EN 61010-1 2nd Edition
Shock Vibration Meets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attached
Warranty One year
Weight 0.8 lbs. (363 grams)
Dimensions 3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
EMC EN 61326-1
Calibration User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable
Operating Temperature 32 °F to 113 °F (0 oC to 45 oC)
Storage Temperature -4 °F to +140 °F (-20 oC to +60 oC)
Test Connectors Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cables
Cable Tests Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen
Tone Generator IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz]
PoE Detection Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices
Ethernet Port Test Advertised speed of 802.3 Ethernet ports (10/100/1000)
Operating Humidity 90 % (50 °F to 95 °F; 10 oC to 35 oC)
(%RH without condensing) 75 % (95 °F to 113 °F; 35 oC to 45 oC)
Agency Certifications N10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2
EAN 0754082054368
Manufacturer Fluke
