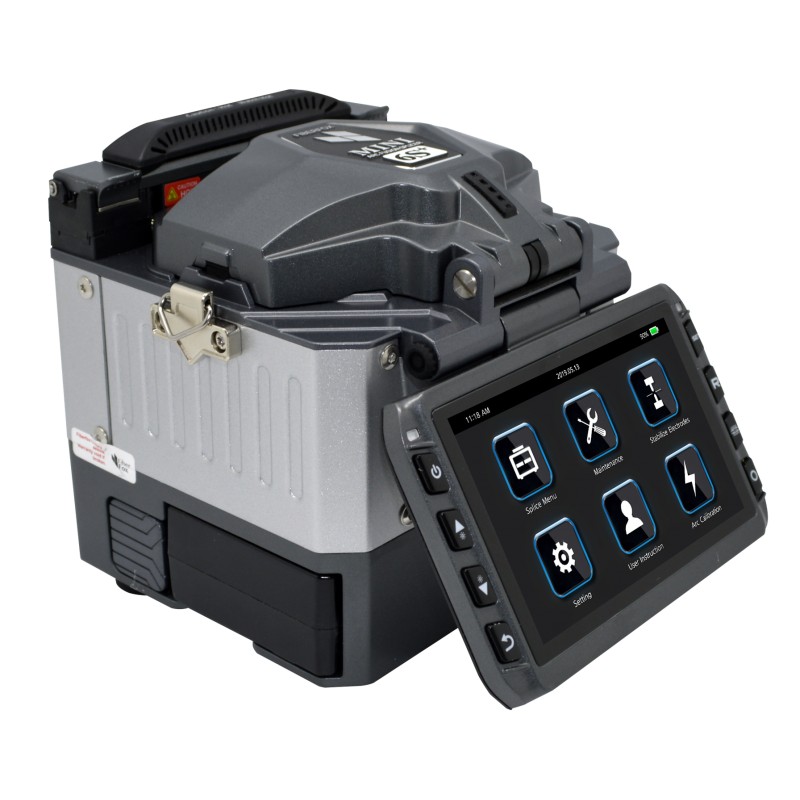

FiberFox Mini 6S+ WiFi Splicer Kit

In Stock
Reference: FF-FS-M6S-PLUS

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The Mini 6S+ comes with all the same excellent specification as the Mini 6s Core Alignment Fusion Splicer but with extra enhancements so that users spends even less time on each termination.  This unit is still the same compact size for convenient transportation and storage & comes with a full range of accessories and spares.



Heating Time
15sec with 60mm sleeve		 The Fast Splicing Time
7sec with SM fiber
Universial Holder
250㎛ / 900㎛ / 2~3Φ / Indoor		 LED Injection System
(No Mirrors)
400 cycles (Splicing & Heating)
with Two Batteries		 SOC Compatible




  • 01MINI 6S+ Splicer
  • 04 Power Cord
  • 07 Car Cigar Cable
  • 10 SOC Heater Block
  • 13 Shoulder Strap
  • 02 MINI 50G+ Cleaver
  • 05 USB Cable
  • 08 Cooling Tray
  • 11 SOC Holder
  • 14 User Manual CD
  • 03 Cleaver Softcase
  • 06 AC Adapter
  • 09 Spare Electrode
  • 12 2 Battery Packs
  • 15 Hand Carrying Case
FibreFox
FF-FS-M6S-PLUS

Data sheet

Weight
1.49Kg (without battery)
Battery
Typical 200 Cycles (Splice & Heat) / single battery, 2 Batteries Standard
Average Loss
SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)
Electrode Lifespan
sub 5,500 arcs
Applicable Fiber
SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
Cleaved Length
Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum
Coating Dlameter
100-1,000um
Cladding Dlarmeter
80-150um
Heating Programs
Factory installed mode : 11, User installable mode : 23
Heating Time
Typical 15s
Protection Sleeve
40mm, 60mm, SOC Connector Storage
Data Output
Micro HDMI-USB master device
Splice Programs
Factory installed mode: 33, User installable mode: 70+
Splice Memory
Up to 5,000 records and 2,000 splice images
Illumination
LED emitting white lignt(1 piece)
Monitor
Color 4.3inch LCD monitor, with Touch Screen (Tempered Glass)
Cameras
2 CCD camera system
Magnification
XY style : 150 power, X/Y : 300 power
Fiber Display
X/Y or XY, single X.Y
Wind Protection
The max wind speed 15m/s
Operating Environment
Elevation 0-5,000 meters, -20~60˚C, 0~95% relative humidity
Storage Condition
Temperature -20 to 40˚C, 0~95% relative humidity, battery -20~30˚C
Pull Test
1.96~2.25N (standard)
Attenuation Splicing
Range : 0.1dB ~ 20dB (0.1dB step)
