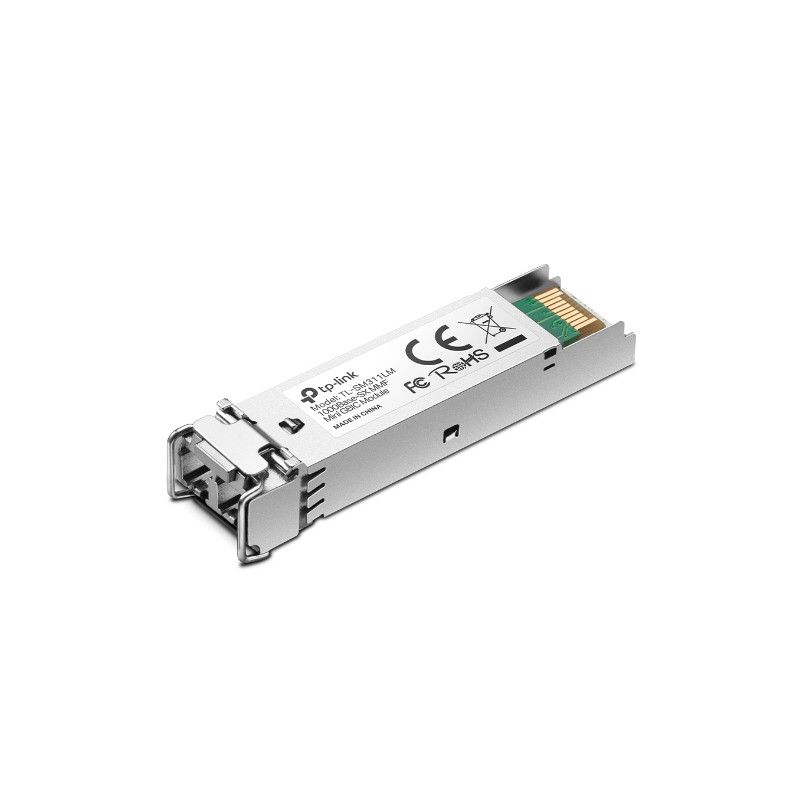

TP-Link MiniGBIC Module
MiniGBIC, 850nm, Multi-mode Fiber, 1.25Gbps, LC/UPC
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
TL-SM311LM
Data sheet
- Certification
- FCC, CE
- Depth
- 13.7 mm
- Height
- 12.9 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 55.4 mm
- Product colour
- Metallic
- Fiber cable diameters supported (core/cladding)
- 50/125,62.5/125 µm
- Harmonized System (HS) code
- 85369010
- Compliance certificates
- RoHS
- Minimum operating temperature
- 0 °C
Specific References
- EAN13
- 0845973030209
New
MiniGBIC, 850nm, Multi-mode Fiber, 1.25Gbps, LC/UPC
