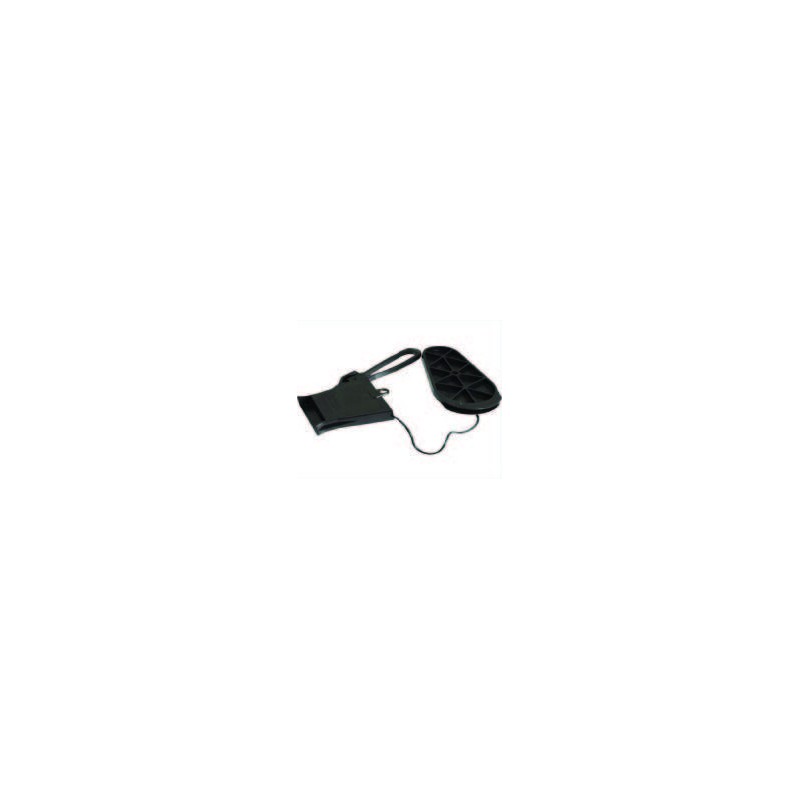

Drop Wire Clamp 5.35 FTTH R
The drop wire clamp 5/35 FTTH R is used for the dead-ending of Ø2,5 to 5mm aerial round drop cables distribution networks where spans do not exceed 70m.
This one-piece thermoplastic clamp is made up of a closed conical body, a round groove wedge attached to the body by a tie, and an open bail to secure it directly on pole fittings.
The 5/35 FTTH R can be secured to many different types of closed or opened hardware (min Ø 10mm holes).
This one-piece thermoplastic clamp is made up of a closed conical body, a round groove wedge attached to the body by a tie, and an open bail to secure it directly on pole fittings.
The 5/35 FTTH R can be secured to many different types of closed or opened hardware (min Ø 10mm holes).
- Monobloc and cost-efficient design.
- Simple, fast and tool-less installation.
- Effective clamping of the cable by conical wedging.
- Adjusting the drop wire load or sag by blocking the wedge in backward position.
- Direct installation on mounting hardware Ø10mm min.eye or pigtail type.
