Lenovo FC5022
Flex System FC5022 16 Gb SAN Scalable Switch

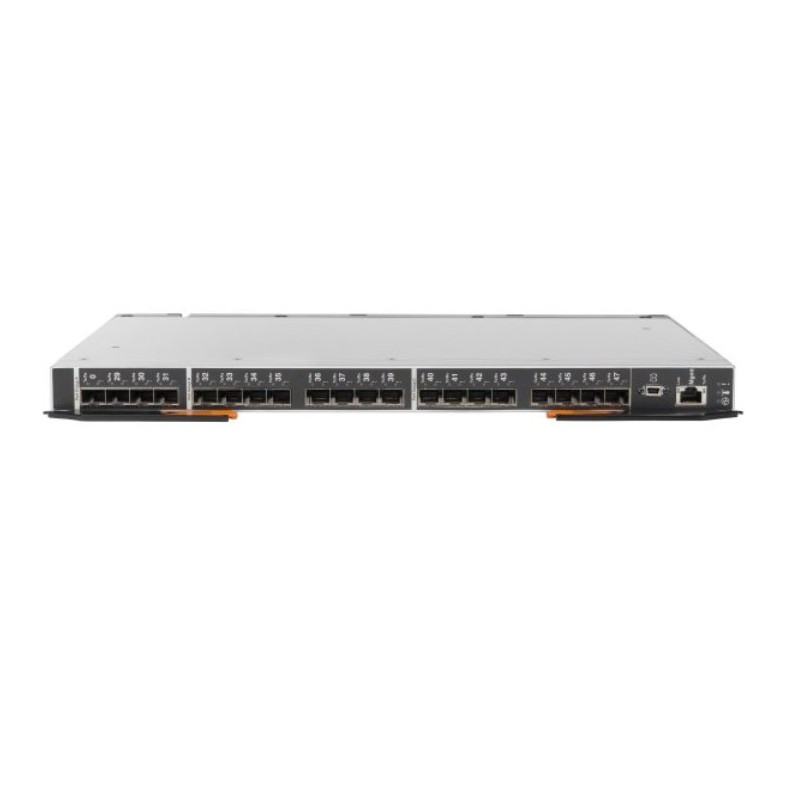

The IBM Flex System™ FC5022 16Gb SAN Scalable Switch is a Gen 5 Fibre Channel (FC) high-density, 48-port switch that operates at 16 and 8 Gbps FC speeds and is used in the IBM Flex System chassis. The switch provides 28 internal ports to compute nodes by way of the Flex midplane and 20 external SFP+ ports, as shown in Figure 1. The FC5022 SAN switch module delivers a scalable embedded option for IBM Flex System users connecting to 8 or 16 Gbps FC storage, deploying a new storage area network (SAN) or connecting to an existing SAN in their enterprise. The switch offers end-to-end 16 Gb with backwards compatibility to 8 Gb and 4 Gb to the SAN connectivity. Monitoring and management are simplified using end-to-end Brocade tools, such as Web Tools and the Brocade Network Advisor (BNA).
88Y6374
Data sheet
- 10G support
- No
- Basic switching RJ-45 Ethernet ports quantity
- 2
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Colour of product
- Black
- Depth
- 317 mm
- Fiber optic connector
- FC
- Height
- 990mm
- Management protocols
- SNMP v1
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
- Operating relative humidity (H-H)
- 20 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Security algorithms
- SSH-2
- Storage relative humidity (H-H)
- 8 - 80 %
- Storage temperature (T-T)
- 5 - 45 °C
- Switching capacity
- 993.6 Gbps
- Weight
- 3200 g
- Width
- 401 mm
Specific References
- EAN13
- 0883436162111
Flex System FC5022 16 Gb SAN Scalable Switch
