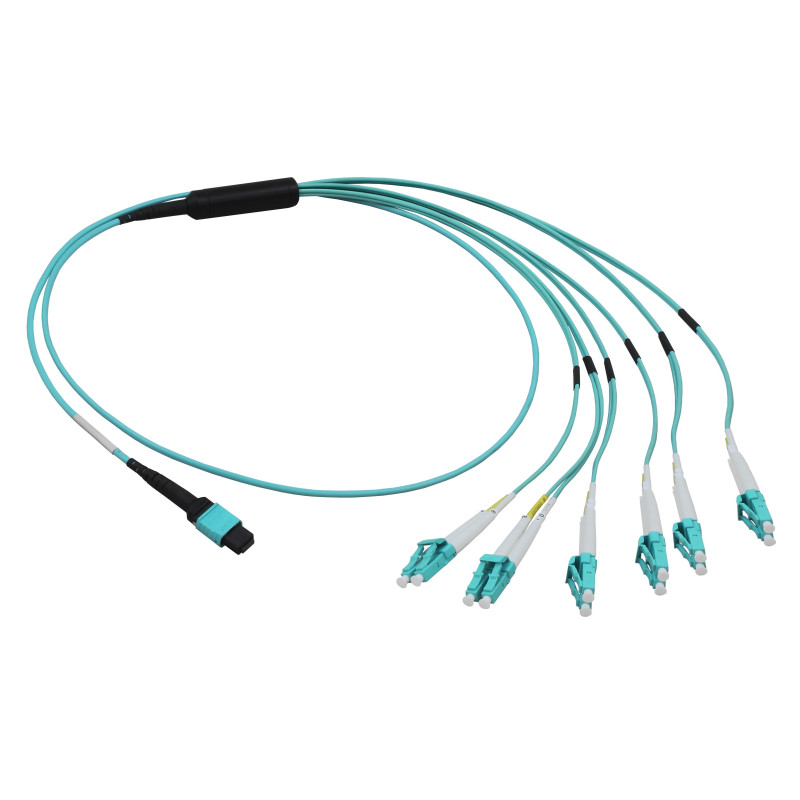

MTP - Fanout Harness Cables
MTP Fanout Cables fitted with MTP connectors at one end and LC or SC Connectors at the other. Custom made to your specification
The CCS Starlight® Pre-terminated Plug and Go Fibre System provides the Rapid Fibre Deployment market with an extremely cost effective, expandable and high speed system.
Starlight® utilises MTP® brand pre-terminated assemblies to ensure optimum performance is achieved when interconnecting pre-terminated Starlight® cassettes and panels.
Assemblies are available in 12 & 24 fibres, and micro and ruggedised cable in multimode OM1 62.5/125, OM2 50/125, OM3 50/125, OM4 50/125 and singlemode OS2 9/125 options.
The Starlight® System is manufactured in our own advanced fibre termination facilities under stringently controlled laboratory conditions, and is quality controlled to rigorous standards using advanced fibre interferometer testing equipment.
Starlight® pre-terminated assemblies surpass the high standards required for datacomms and CATV applications.
We can manufacture any kind of MTP cable to your exact configuration, please contact us for more information and prices
Features:
- Quick installation time
- Singlemode & multimode performance
- Ensure optimum interconnect performance
- Up to 24 fibres in one connector
- Interferometer tested
- Quality controlled factory
- Easy to use MTP® brand connector
Please configure your product using the options on the right.
The following table shows the speed & recommended maximum distances for each fibre type:
| 62.5/125 (OM1) | 50/125 (OM2) |
50/125 (OM3) |
50/125 (OM4) |
9/125 (OS2) |
|
| 100Mbs | 2km | 2km | 2km | 2km | 40km |
| 1Gbs | 275m | 550m | 800m | 1100m | 100km |
| 10Gbs | 33m | 82m | 300m | 550m | 40km |
| 40Gb / 100Gbs | - | - | 100m | 125m | 40km |
MTP Fanout Cables fitted with MTP connectors at one end and LC or SC Connectors at the other. Custom made to your specification
