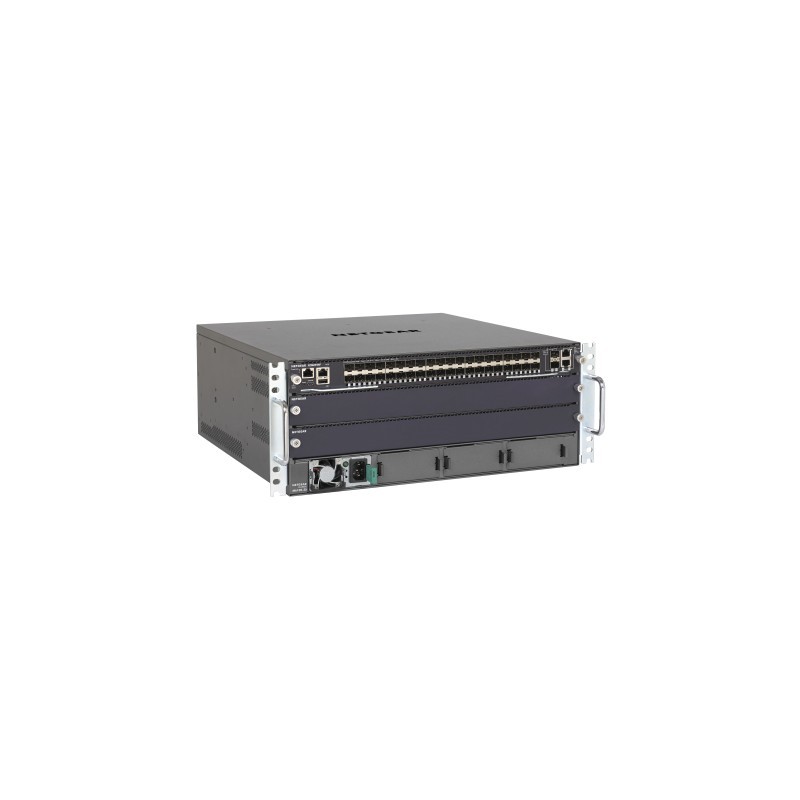

Netgear M6100-44GF3
Starter Kit, 40 x 1G RJ45, 2 x SFP+, 2 x 10GBASE-T RJ-45
XCM8903SF-10000S
Out of Stock
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
| 10G support | Yes |
| Certification | CE\nFCC Part 15 Class A\nVCCI Class A\nClass A EN 55022\n(CISPR 22) Class A\nClass A C-Tick\nEN 50082-1\nEN 55024 |
| Depth | 441.6 mm |
| Form factor | 4U |
| Height | 175.9 mm |
| Housing material | Metal |
| Operating temperature (T-T) | 0 - 50 °C |
| Safety | CE, CSA, UL 1950 /cUL IEC 950/EN 60950 |
| Supported network protocols | IPv4/IPv6 |
| Width | 432 mm |
