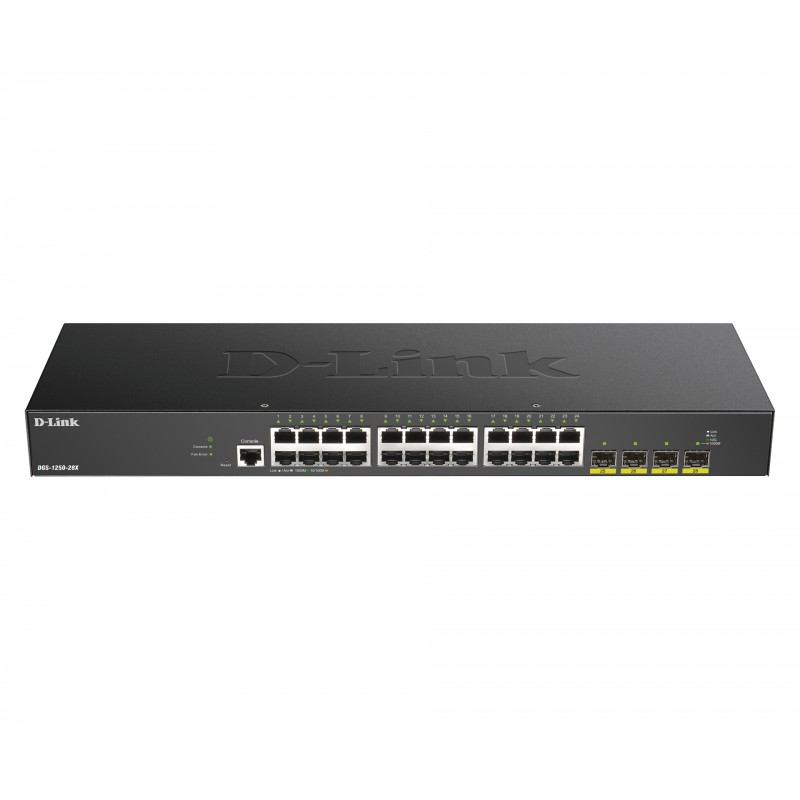

D-Link DGS-1250-28X
DGS-1250-28X, 24x 10/100/1000BASE-T, 4x 10G SFP+, 128 Gbps, 95.24 Mpps, 100-240V AC, VLAN, QoS, L3, ACL, 440x140x44 mm
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Auto MDI/MDI-X
- Y
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Cable types supported
- Cat5,Cat5e
- Certification
- CB, UL, BSMI, CCC
- Copper ethernet cabling technology
- 10BASE-T,100BASE-TX,1000BASE-T
- Depth
- 140 mm
- Electromagnetic compatibility
- CE A, VCCI A, FCC A, IC, BSMI
- Fiber ethernet cabling technology
- 100BASE-FX,1000BASE-LHX,1000BASE-X,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX
- Firmware upgradeable
- Y
- Flash memory
- 96 MB
- Flow control support
- Y
- Full duplex
- Y
- Heat dissipation
- 104.346 BTU/h
- Height
- 44 mm
- LED indicators
- Activity,Link,Power,Speed
- MAC address table
- 16000 entries
- Mean time between failures (MTBF)
- 743482.45 h
- Memory type
- DDR3-SDRAM
- MIB support
- RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650,
- Networking standards
- IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Noise level
- 47.6 dB
- Number of static routes
- 124
- Number of VLANs
- 4094
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- -5 - 50 °C
- Package weight
- 2966 g
- Package width
- 282 mm
- Packet buffer memory
- 12 MB
- Quality of Service (QoS) support
- Y
- Security algorithms
- EAP,MD5,PEAP,SSH,SSL/TLS,TTLS
- Source data-sheet
- Icecat.biz
- Spanning tree protocol
- Y
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Store-and-forward
- Y
- Switch layer
- L3
- Switching capacity
- 128 Gbit/s
- Web-based management
- Y
- Weight
- 3860 g
- Width
- 440 mm
- Product colour
- Black
- Shipping (inner) case net weight
- 11644 g
- Quantity per shipping (inner) case
- 5 pc(s)
- Shipping (inner) case gross weight
- 16213 g
- Pallet gross weight (air)
- 407612 g
- Number of cartons per pallet (air)
- 24
- Quantity per pallet (air)
- 120 pc(s)
- Pallet height (air)
- 2043 mm
- Pallet gross weight (sea)
- 407612 g
- Number of cartons per pallet (sea)
- 24
- Quantity per pallet (sea)
- 120 pc(s)
- Pallet height (sea)
- 2043 mm
Specific References
- EAN13
- 0790069448164
