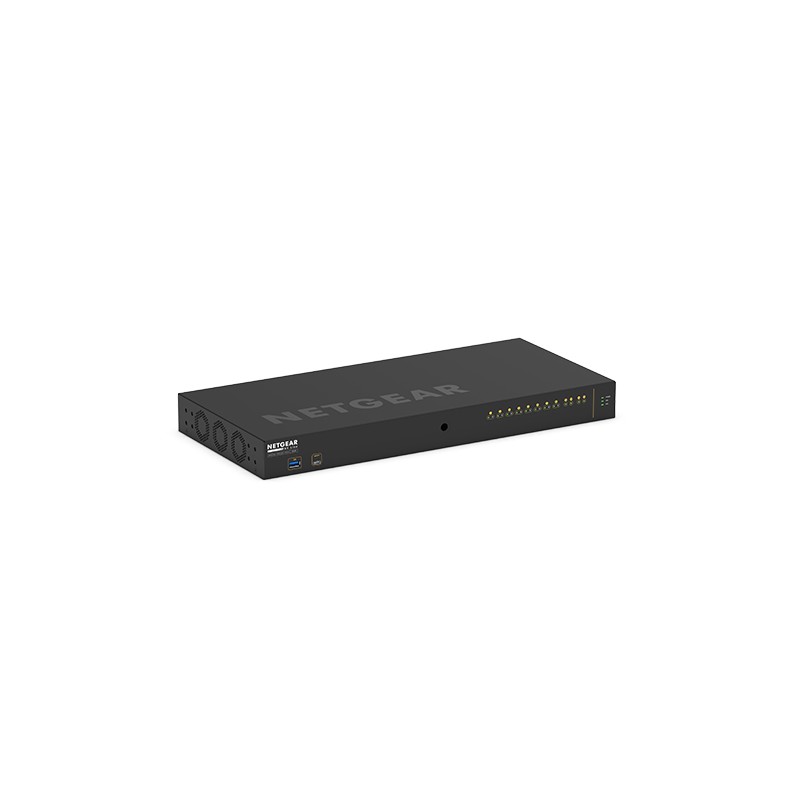

NETGEAR M4250-10G2XF-PoE+

Name: NETGEAR M4250-10G2XF-PoE+
Brand: NETGEAR
SKU: GSM4212PX-100EUS

NETGEAR M4250-10G2XF-PoE+, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

In Stock

Reasons to Buy

Dedicated AV web-based GUI interface for more specific AV installations
Color-based AV profiles can be applied to the different ports
Dante, Q-SYS, AES67 and AVB audio profiles
AVB requires an AVB4212P-10000S license (sold separately)
NVX, SVSI, Q-SYS, NDI and Dante video profiles
Audio / video / control mixed profiles
Automatic switch interconnect with NETGEAR IGMP Plus
Common Layer 2 and Layer 3 switching engine across all M4250 models
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Technical Headlines

Managed L2/L3
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 10
MAC address table: 16000 entries Switching capacity: 60 Gbit/s
Access Control List (ACL)
1U Rack mounting
Power over Ethernet (PoE)

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.

M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

Brand NETGEAR

Reference GSM4212PX-100EUS

Data sheet

10G support: No
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Built-in processor: Yes
Depth: 200 mm
Form factor: 1U
Full duplex: Yes
Heat dissipation: 1046.05 BTU/h
Height: 43.2 mm
Internal memory: 2048 MB
LED indicators: PoE, Power, Status
MAC address table: 16000 entries
Mean time between failures (MTBF): 947871 h
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Noise level: 39.22 dB
Non-operating altitude: 0 - 3000 m
Number of VLANs: 4093
Operating altitude: 0 - 3000 m
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): 0 - 50 °C
Packet buffer memory: 16 MB
Power consumption (typical): 306.4 W
Power over Ethernet (PoE): Yes
Processor model: ARM Cortex-A9
Quality of Service (QoS) support: Yes
Rack mounting: Yes
Source data-sheet: Icecat.biz
Spanning tree protocol: Yes
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -20 - 70 °C
Store-and-forward: Yes
Switch layer: L2/L3
Switch type: Managed
Switching capacity: 60 Gbit/s
Throughput: 44.64 Mpps
Weight: 2.96 kg
Width: 440 mm
Product colour: Black
Harmonized System (HS) code: 85176990
