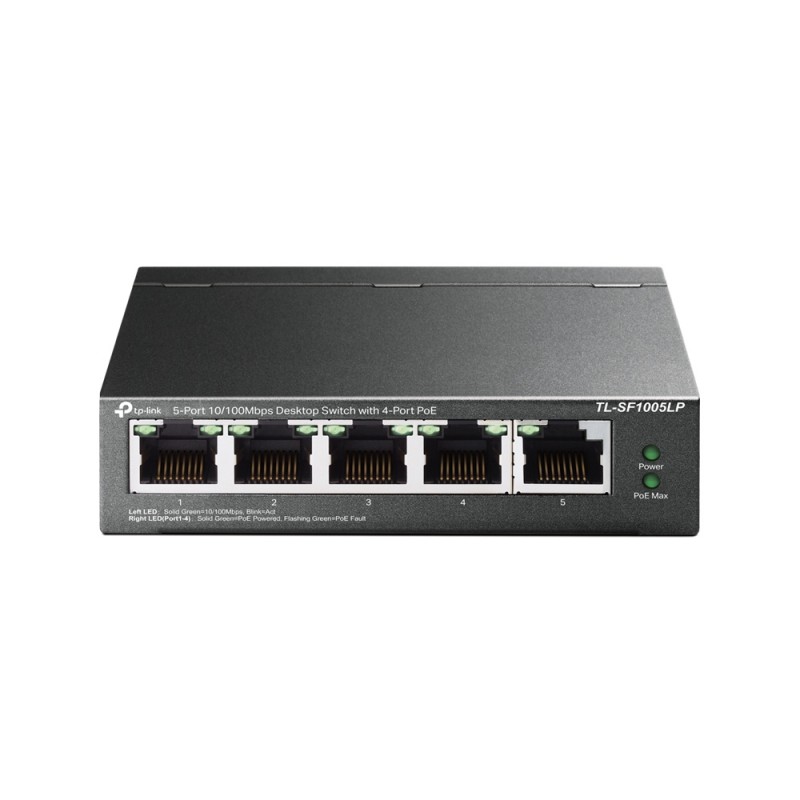

TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

5× 10/100 Mbps RJ45, Fanless, AUTO MDI/MDIX, 100 x 98 x 25 mm,

TL-SF1005LP

In Stock

Professional Fast Ethernet Switch with 4 PoE Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m



TL-SF1005LP



Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.



Ideal for IP Surveillance

—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.



The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.



Priority Video

Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.



Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Durable Metal Casing

The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
Depth98 mm
Height25 mm
Operating temperature (T-T)0 - 40 °C
Width100 mm
Product colourBlack

TL-SF1005LP.pdf

TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE Data Sheet

Download (3.14M)
