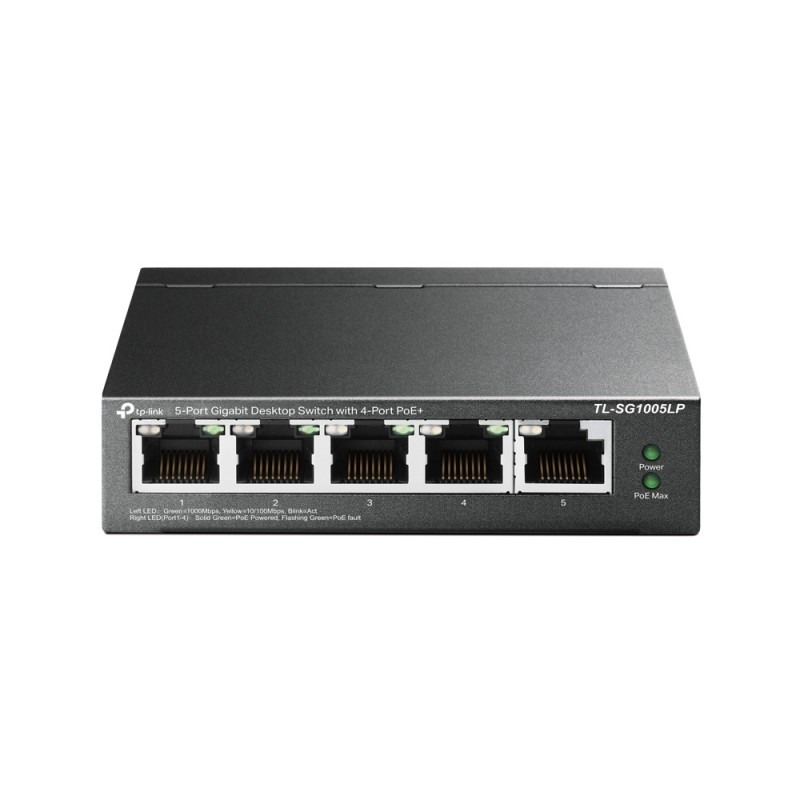

TP-LINK TL-SG1005LP
TP-LINK TL-SG1005LP TP-LINK TL-SG1005LP TP-LINK TL-SG1005LP TP-LINK TL-SG1005LP

TP-LINK TL-SG1005LP

5x 1G RJ-45, 10 Gbps, 7.44 Mpps, PoE, 99.8×98×25 mm

TL-SG1005LP

Stock Due 05-12-2025

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Professional 5-Port Gigabit Switch with 4 PoE+ Ports

Plug and Play, with PoE power supply which meets the needs of diverse devices.



Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.



Intelligent Power Management

When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Advanced Functions for Higher Performance

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.



Durable Metal Casing

The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
10G supportNo
CertificationFCC, CE, RoHS
Depth98 mm
Height25 mm
Operating temperature (T-T)0 - 40 °C
Power over Ethernet (PoE) ports quantity4
Width99.8 mm
Product colourBlack
FanlessY
