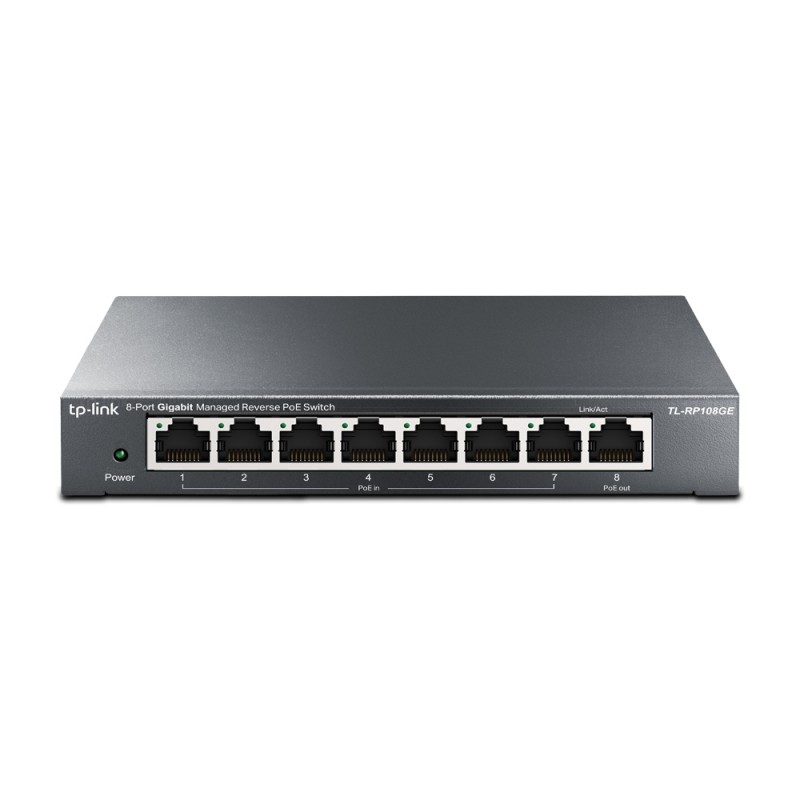

TP-LINK 8-Port Gigabit Managed Reverse PoE Switch
CSMA/CD, 7 x PoE-in RJ45, 1 x PoE-out RJ45, 10/100/1000Mbps, 11.9 Mbps, 16 Gbps, 158 × 99.1 × 25 mm
What This Product Does
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
TL-RP108GE
Data sheet
- 10G support
- No
- Certification
- FCC, CE, RoHS
- Depth
- 99.1 mm
- Height
- 25 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Power over Ethernet (PoE) ports quantity
- 8
- Width
- 158 mm
- Product colour
- Black
- Half duplex
- Y
- Power over Ethernet (PoE) type supported
- Passive PoE
Specific References
- EAN13
- 6935364052713
CSMA/CD, 7 x PoE-in RJ45, 1 x PoE-out RJ45, 10/100/1000Mbps, 11.9 Mbps, 16 Gbps, 158 × 99.1 × 25 mm
