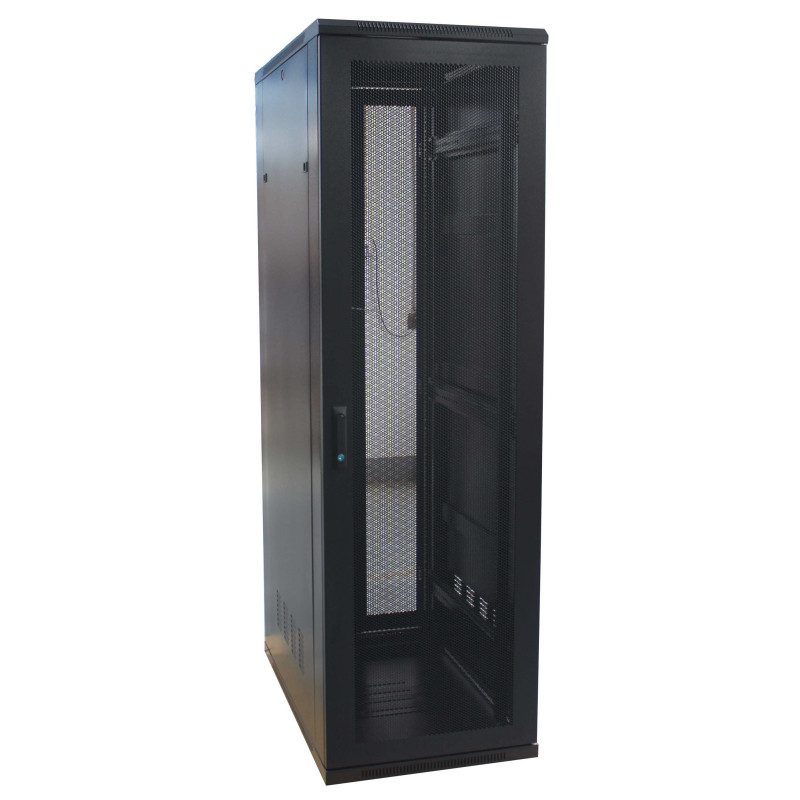

RackyRax 600mm x 1000mm Server Cabinet

600mm Wide x 1000mm Deep Floor Standing Server Rack Cabinet

RR-F5-12-M is out of stock, due in beginning of...
Reference: RR-F5-12-M
Height
Flat Pack

RackyRax 19” Server Cabinets combine all the features of a premium Server Rack Cabinet including the aesthetically pleasing design, without the price-point to match.

The cabinets are fitted with quick release front and rear perforated doors (approximately 60% open), fitted with lockable swing handles. The side panels can be fitted with cabinet locks.

The large floor aperture gives maximum cable access, plus there is cabling access in the top. All apertures are fitted with blanking plates as standard.

These Server Cabinets are available in various configurations and are supplied fully assembled on a pallet, but all cabinets can be easily dismantled if required. The high quality attractive black finish ensures the cabinet will complement high specification office environments.

Each Server Cabinet is assembled in the UK using the highest quality components and boast an impressive load rating of up to 800kg (evenly distributed). The RackyRax range of Server Cabinets has been designed ensure easy installation and maintenance.

Cable access can be made through removable gland plates in the roof or through the open base.

Each RackyRax Cabinet is supplied fully assembled and ready to go

Features:

  • 800kg loading capacity (evenly distributed)
  • Lockable/removable mesh front door with steel surround
  • Lockable/removable mesh rear door
  • Removable steel side panels
  • Adjustable 19” mounting profiles front and rear
  • Optional roof mounted fan
  • Removable gland plates top and bottom for cable access
Dimensions By U Height

U Height Size (HxWxD) Weight
12U 635x600x1000 mm 26.4 Kg
18U 902x600x1000 mm 39.6 Kg
21 1035x600x1000 mm 46.2 Kg
24U 1180x600x1000 mm 52.8 Kg
27U 1302x600x1000 mm 59.4 Kg
39U 1835x600x1000 mm 85.8 Kg
42U 1968x600x1000 mm 92 Kg
45U 2103x600x1000 mm 99 Kg



A full range of accessories are available to complement the cabinet including Jacking Feet, transport castors, shelves and vertical cable trays.

Please note - if you arent ordering this product online you will need to add Castors and Roof Fans separately, they will not be added automatically under the part number listed above.

RackyRax
RR-F5-12-M

Data sheet

Depth
1000mm
Width
600mm
