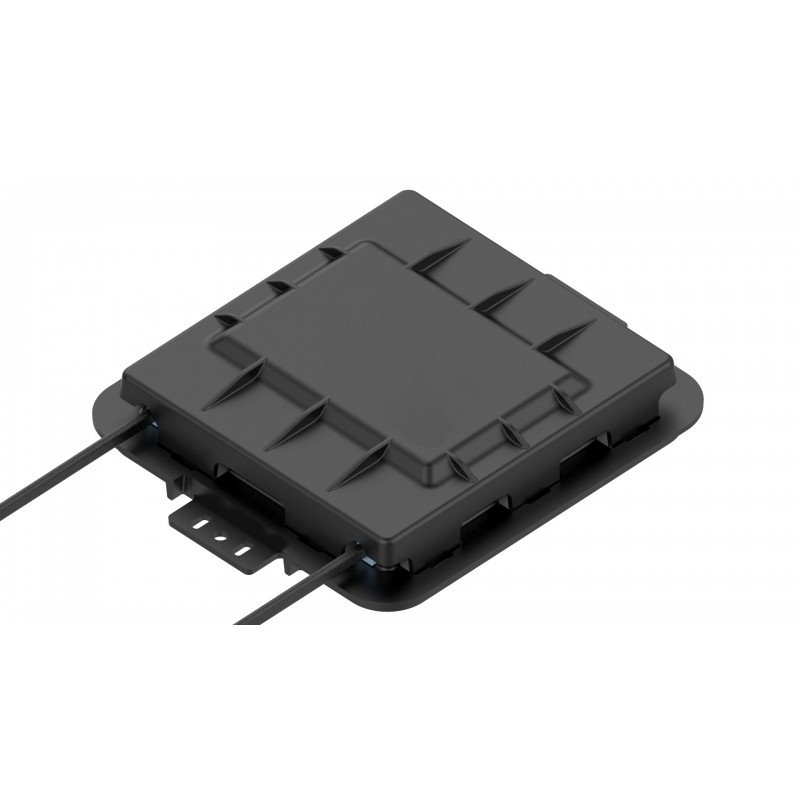

Connectix IP68 External Drop Terminal Enclosure (DTC)
  • Connectix IP68 External Drop Terminal Enclosure (DTC)
  • Connectix IP68 External Drop Terminal Enclosure (DTC)

Connectix IP68 External Drop Terminal Enclosure (DTC)

Enquire for Price & Lead time
Reference: 009-007-011-10
Model

Require Project Pricing?

Click here to email your parts list and we will send you a quote
This IP68 External Drop Termination Closure (DTC) offers a compact size and a rugged exterior that is designed to allow for installation in tight spaces without compromising functionality. Four corner ports provide flexibility during installation. Called the Coyote DTC, this is ideal for quick restoration of damaged, diverse routed or cut fibre service drops or last mile FTTH applications.

Features and Benefits

  • Utilises a Splice Block System which permits single fusion, mass fusion, mechanical, PLC splitters, or a combination of all within one closure
  • Factory-installed gasket allows re-entry and re-use
  • Internal organiser manages buffer tube or ribbon cables
  • Snap together design is quick to assemble, no special tools required
  • Designed and tested in accordance to Telcordia® GR-771-CORE buried, underground, IP68 rated requirements
Connectix Cabling Systems
009-007-011-10

Data sheet

Application
Direct Bury, Below Grade, Pole/Wall, Aerial
Splice Capacity (Maximum) - Single Fusion, Ribbon
24, 36
Cable Ports
4
Cable Diameters
4.3 - 9.4mm and Flat Drop
Configuration
In-Lin or Butt
Ingress Protection
In accordance to TELECORDIA GR-771-CORE, Buried, Underground, IP68
