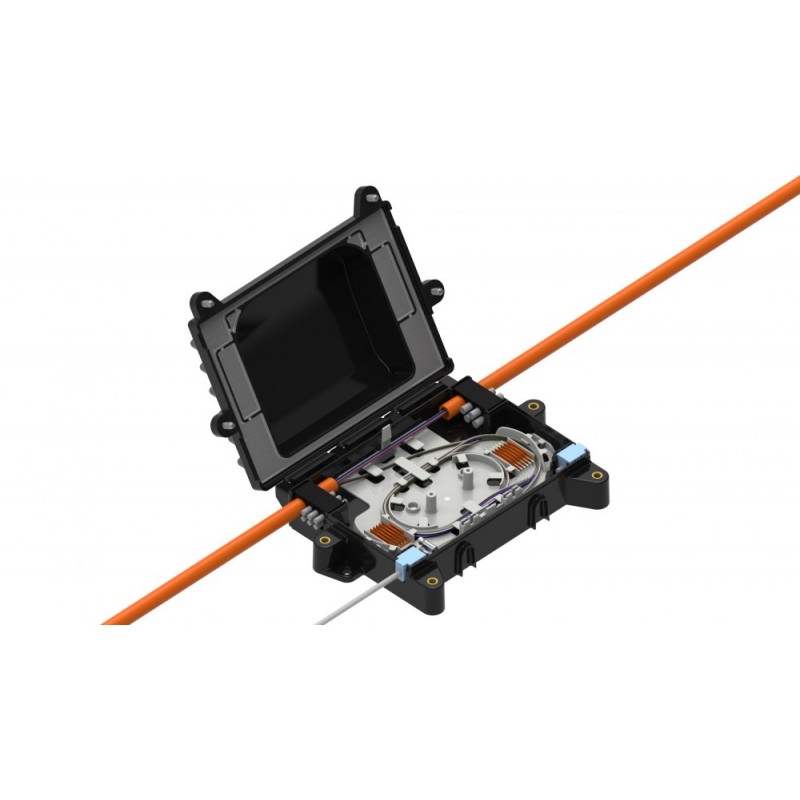

Connectix IP68 External Drop Terminal Enclosure (DTC) 4 & 6
Connectix IP68 External Drop Terminal Enclosure (DTC) 4 & 6 Connectix IP68 External Drop Terminal Enclosure (DTC) 4 & 6

Connectix IP68 External Drop Terminal Enclosure (DTC) 4 & 6

009-007-011-50

Enquire for Price & Lead time

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

The IP68 External Drop Termination Closure (DTC) 4 and 6 offer a durable, compact solution with multiple internal fibre organisers to support your current and future needs. Network evolution is unpredictable so why not choose a closure system developed to adapt. The DTC4 can be used as a transition unit for interior duct applications. Both the DTC4 and DTC6 can equip an adapter bulkhead tray that hinges to allow access to the underlaying fibre slack storage area.


Features and Benefits
  • Dimensions: 10.8” x 7.8” x 3.2” (274 x 198 x 82 mm)
  • Max Splice Capacity: 24 Single Fusion
  • Max Adapter Quantity: 4 Dual SC or 4 Quad LC
  • Grommet Quantity: 4 or 6 (Multi-Hole Grommets Available)
  • Grommet Cable Diameter Range: Large Grommets= 0.118” - 0.60” (3- 15 mm) Small Grommets= 0.093” -0.420” (2.4 -10.7 mm) and Flat Drop
  • Applications: Aerial, Below Grade, Direct Buried, Pole/Wall Mount, Pedestal, or Interior Applications
  • Designed and tested in accordance to Telcordia® GR-771-CORE Buried, Underground, IP-68 Rated Requirements
  • Constructed out of rugged UV-stabilized, flame-retardant material (UL94-5VA Rated)
  • Hinged cover with integrated over-mold creates a secure seal and provides quick re-entry and re-use
