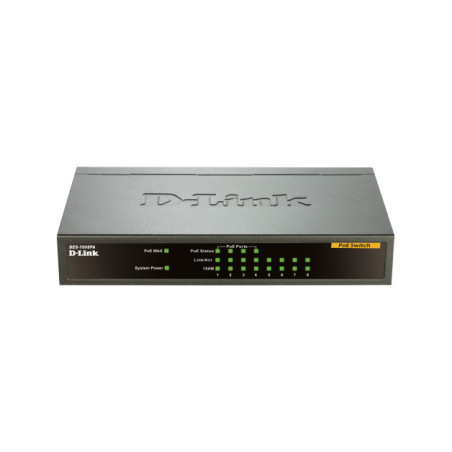

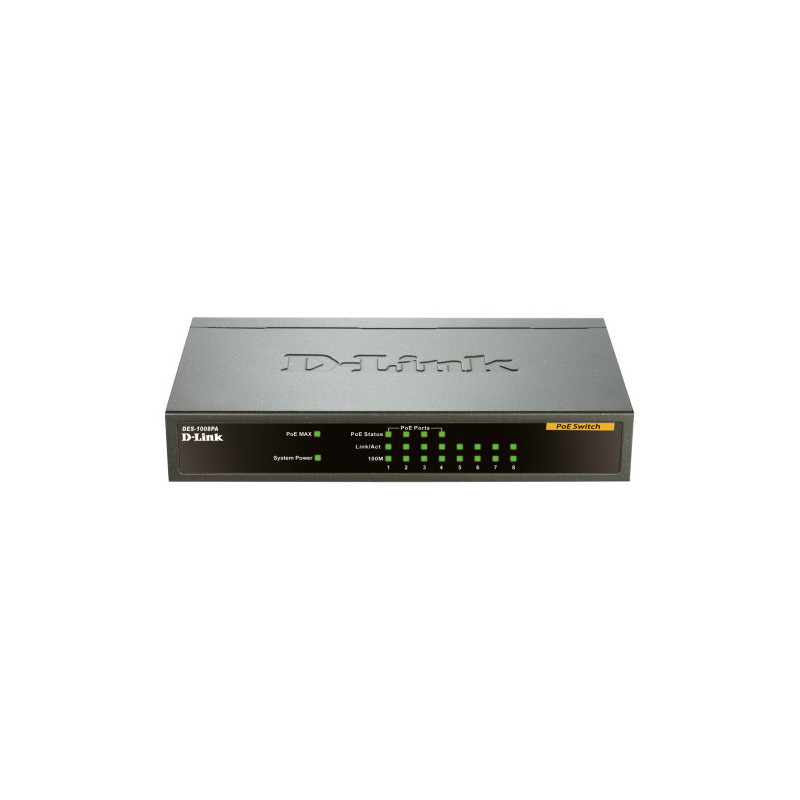

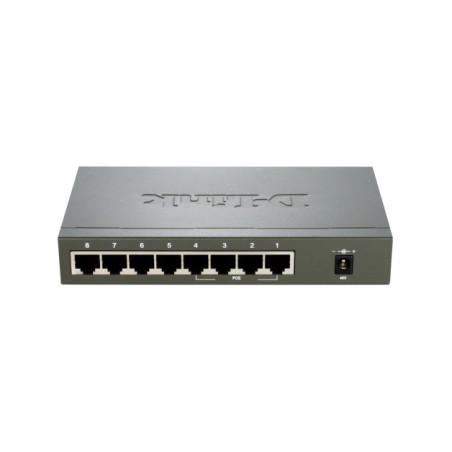

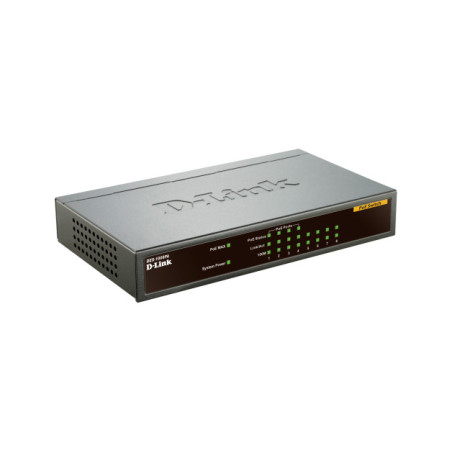

D-Link D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports

D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
In Stock
Reference: des-1008pa
Technical Headlines
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s
  • DC Power over Ethernet (PoE)


8-Port Desktop Switch with 4 Power over Ethernet (PoE) ports

The DES-1008P 8-Port switch can convey power to up to four network devices via the usual network cables using Power over Ethernet technology. This provides a cost-effective entry-level solution for users wishing to make the most of their network. The DES-1008P enables users to easily connect and supply power to devices such as wireless Access Points (AP), IP cameras and IP phones via the common network cables.

As a switch, the DES-1008P can be used to share files, music and video across your network or create a multi-player gaming environment. Users can also add multiple computers, printers, Network Attached Storage (NAS) and any other Ethernet device onto a network.

This device runs ultra-quiet, making it ideal for both home and small office use. In addition, it can be wall-mounted to save desktop space.

IEEE 802.3af Power over Ethernet (PoE)

Four out of the eight ports on the DES-1008P support the IEEE 802.3af standard for Power over Ethernet (PoE). Each of these ports can supply up to 15.4W, up to a total PoE budget of 56W, allowing users to attach IEEE 802.3af-compliant devices without requiring an additional power source.
Networking devices receiving power in this way do not need to be placed within close proximity of a power outlet, allowing greater flexibility for their placement.
Compliance with IEEE 802.3af also means that when a compliant device is attached, the switch automatically adjusts the power supplied to that device.
For non-compliant devices, a PoE adapter such as D-Link’s DWL-P50 can be used to still allow the switch to be the power source.

Superior performance

The switch is completely unmanaged, so no configuration is required and installation is quick and easy. Support for auto-MDI/MDI-X on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10 Mbps or 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
The DES-1008P also features diagnostic LEDs that display status and activity, allowing you to quickly detect and correct problems on the network. With wire-speed filtering and store-and-forward switching, the DES-1008P also maximizes network performance while minimising the transmission of bad network packets. Combining the convenience of PoE, superior performance, and ease of use, the D-Link DES-1008P is the ideal choice for adding PoE devices to either a home or a small business network.

Hassle-free set-up

The DES-1008P is a plug-and-play device requiring no configuration, which makes set-up simple and hassle-free.
D-Link
des-1008pa

Data sheet

10G support
No
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Certification
FCC, CE, VCCI
Depth
99.1 mm
Height
27.9 mm
Input current
9/4.5 A
Input voltage
–36 - –72 V
MAC address table
96000 entries
Maximum data transfer rate
96 Gbit/s
Networking standards
Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating temperature (T-T)
8 - 35 °C
Package weight
998 g
Package width
985.6 mm
Power over Ethernet (PoE) ports quantity
96
Power source
PoE, DC, AC
Safety
LVD
Storage temperature (T-T)
8 - 85 °C
Switching capacity
993.6 Gbps
Weight
454 g
Width
993 mm
Product colour
White,Black
Shipping (inner) case net weight
9656 g
Shipping (inner) case gross weight
9750 g
Pallet gross weight (air)
628450 g
Pallet height (air)
2047 mm
Pallet gross weight (sea)
670000 g
Pallet height (sea)
2097 mm
Products per pallet (air)
750 pc(s)
Products per pallet (sea)
750 pc(s)

Specific References

EAN13
0790069298172

des-1008pa.pdf

D-Link D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports Data Sheet

Download (645.22KB)
