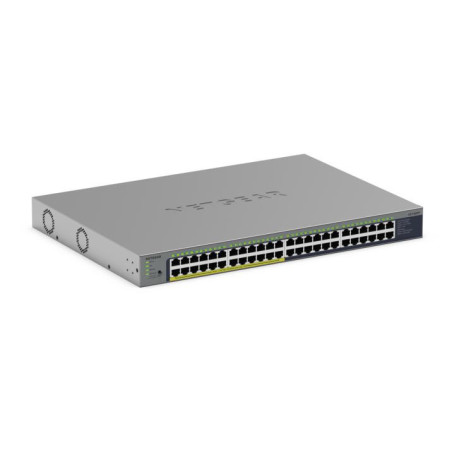

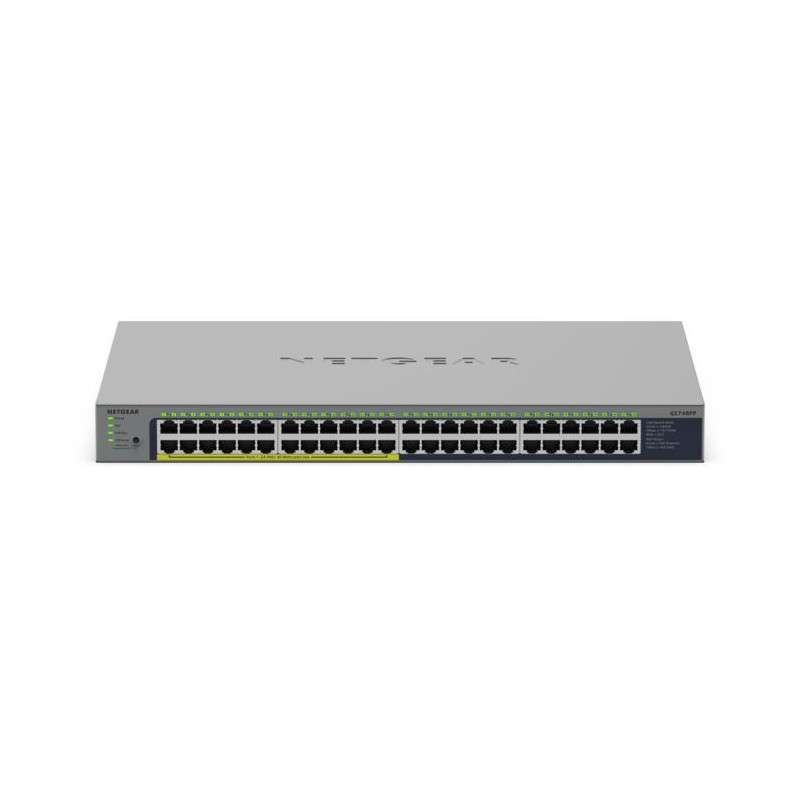

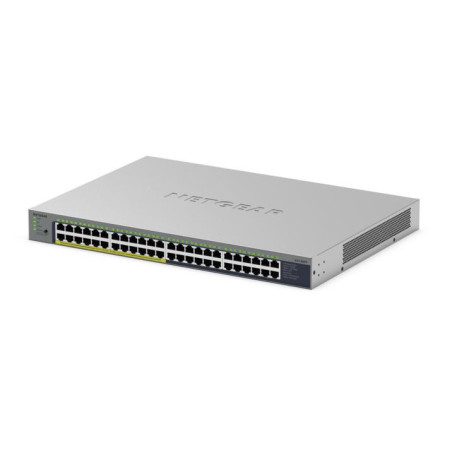

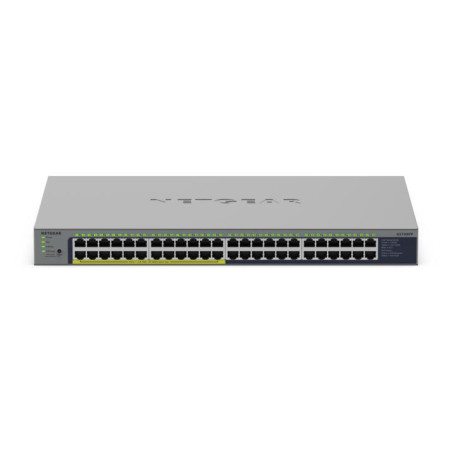

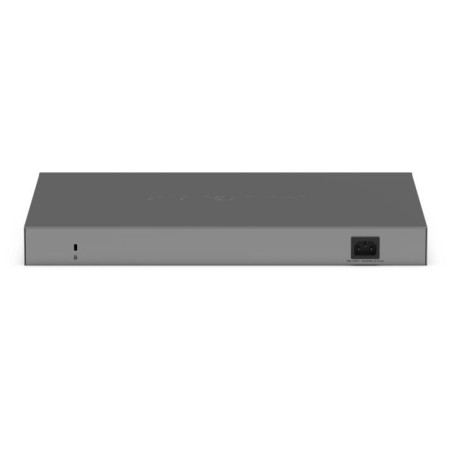

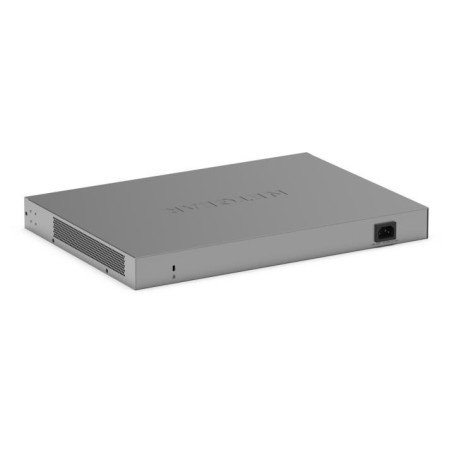

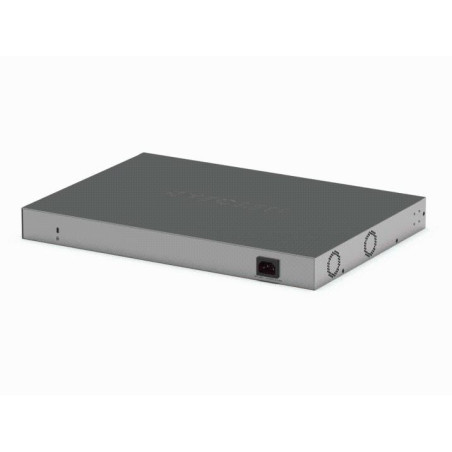

NETGEAR GS748PP
NETGEAR GS748PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Reasons to Buy
Technical Headlines
POWER-OVER-ETHERNET
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
- 48 x Gigabit Ethernet ports with 24 ports of PoE+
- Plug and play switch, no management required
- Energy Efficient Ethernet for maximum power savings
- Dynamic fans for quiet operation
- Rackmount or desktop
Technical Headlines
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10BASE-T
- MAC address table: 8000 entries
- Rack mounting
- AC/DC Power over Ethernet (PoE)
POWER-OVER-ETHERNET
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
GS748PP-100EUS
Data sheet
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Authentication method
- 802.1x
- Bandwidth
- 96 Gbit/s
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 10BASE-T
- Depth
- 310 mm
- Electromagnetic emissions
- CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick
- Ethernet LAN data rates
- 1000 Mbit/s
- Flow control support
- Yes
- Full duplex
- Yes
- Heat dissipation
- 34.2 BTU/h
- Height
- 43 mm
- I/O ports
- 48 x 10/100/1000 Mbps
4 x SFP - Input current
- 8 A
- Latency
- 2,900ns
- MAC address table
- 8000 entries
- Maximum data transfer rate
- 1 Gbit/s
- Mean time between failures (MTBF)
- 570972 h
- MIB support
- RFC 1213 MIB II, RFC 1643, RFC 1493
- Networking standards
- IEEE 802.1p, IEEE 802.3az
- Operating altitude
- 0 - 3000 m
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 50 °C
- Packet buffer memory
- 1.5 MB
- Power over Ethernet (PoE)
- Yes
- Power source
- AC/DC
- Quality of Service (QoS) support
- Yes
- Rack mounting
- Yes
- Safety
- CE mark, cUL IEC950/EN60950
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 70 °C
- Switch type
- Unmanaged
- Weight
- 4.6 kg
- Width
- 440 mm
- Product colour
- Grey
- Compliance certificates
- CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI
- Warranty period
- 2 year(s)
Specific References
- EAN13
- 5715328108516
