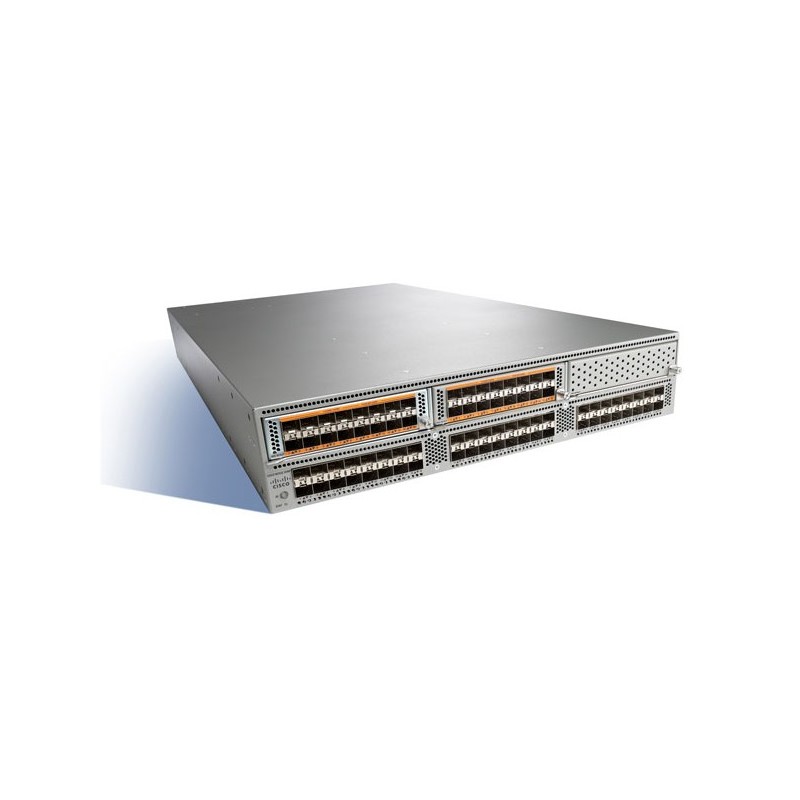

Cisco 5596UP
48 x RJ45, unified, 2 RU, 32,000 MAC address, 4096 VLANs, IGMP, QoS, 390W, 2 x 1100W AC Power Supplies, Fan Trays, 3 Expansion Slot, 21.55 kg
The Cisco Nexus 5500 platform is equipped with expansion modules that can be used to increase the number of 10 Gigabit Ethernet and FCoE ports or to connect to Fibre Channel SANs with 8/4/2/1-Gbps Fibre Channel switch ports, or both.
The Cisco Nexus 5548P and 5548UP supports one expansion module, and 5596UP supports three expansion modules from the following offerings
- Ethernet module that provides sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface
- Fibre Channel plus Ethernet module that provides eight 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface, and eight ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+/SFP interface
- A unified port module that provides up to sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface or up to sixteen ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+ and SFP interface. The use of 1/10 Gigabit Ethernet or 8/4/2/1-Gbps Fibre Channel on a port is mutually exclusive but selectable for any of the 16 physical ports per module.
The Cisco Nexus 5548P and 5548UP supports one expansion module, and 5596UP supports three expansion modules from the following offerings
- Ethernet module that provides sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface
- Fibre Channel plus Ethernet module that provides eight 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface, and eight ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+/SFP interface
- A unified port module that provides up to sixteen 1/10 Gigabit Ethernet and FCoE ports using the SFP+ interface or up to sixteen ports of 8/4/2/1-Gbps native Fibre Channel connectivity using the SFP+ and SFP interface. The use of 1/10 Gigabit Ethernet or 8/4/2/1-Gbps Fibre Channel on a port is mutually exclusive but selectable for any of the 16 physical ports per module.
N5K-C5596UP-FA
Data sheet
- 10G support
- Yes
- Certification
- RoHS
- Depth
- 749 mm
- Form factor
- 2u
- Height
- 88 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Safety
- UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, AS/NZS 609, GB49430-1
- Weight
- 21550 g
- Width
- 439 mm
Specific References
- EAN13
- 0882658390890
48 x RJ45, unified, 2 RU, 32,000 MAC address, 4096 VLANs, IGMP, QoS, 390W, 2 x 1100W AC Power Supplies, Fan Trays, 3 Expansion Slot, 21.55 kg
