TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
Reasons to Buy
Technical Headlines
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

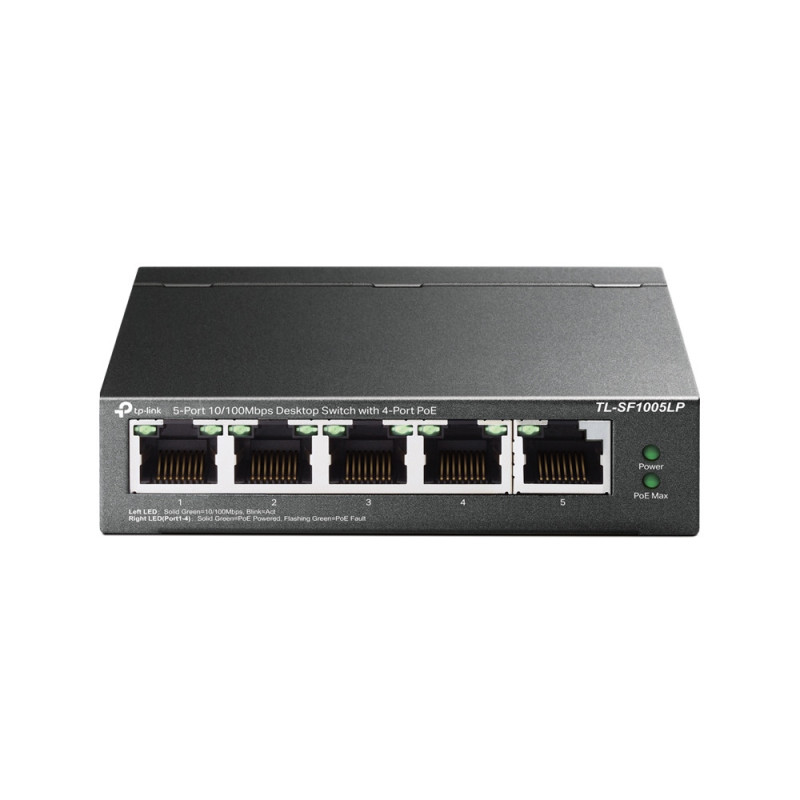

TL-SF1005LP
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
- 5× 10/100 Mbps RJ45 ports
- 4× PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required
Technical Headlines
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 5
- Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX
- MAC address table: 2000 entries Switching capacity: 1 Gbit/s
- DC/PoE Power supply included Power over Ethernet (PoE)
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
TL-SF1005LP
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
TL-SF1005LP
Data sheet
- 10G support
- No
- AC adapter included
- Yes
- AC input frequency
- 50 Hz
- AC input voltage
- 220 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- Depth
- 98 mm
- Height
- 990mm
- Input current
- 9/4.5 A
- Input voltage
- –36 - –72 V
- MAC address table
- 96000 entries
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Operating temperature (T-T)
- 8 - 35 °C
- Package weight
- 998 g
- Package width
- 985.6 mm
- Power over Ethernet (PoE) ports quantity
- 96
- Power source
- PoE, DC, AC
- Storage temperature (T-T)
- 8 - 85 °C
- Switching capacity
- 993.6 Gbps
- Width
- 993 mm
- Product colour
- White,Black
Specific References
- EAN13
- 6935364052799
