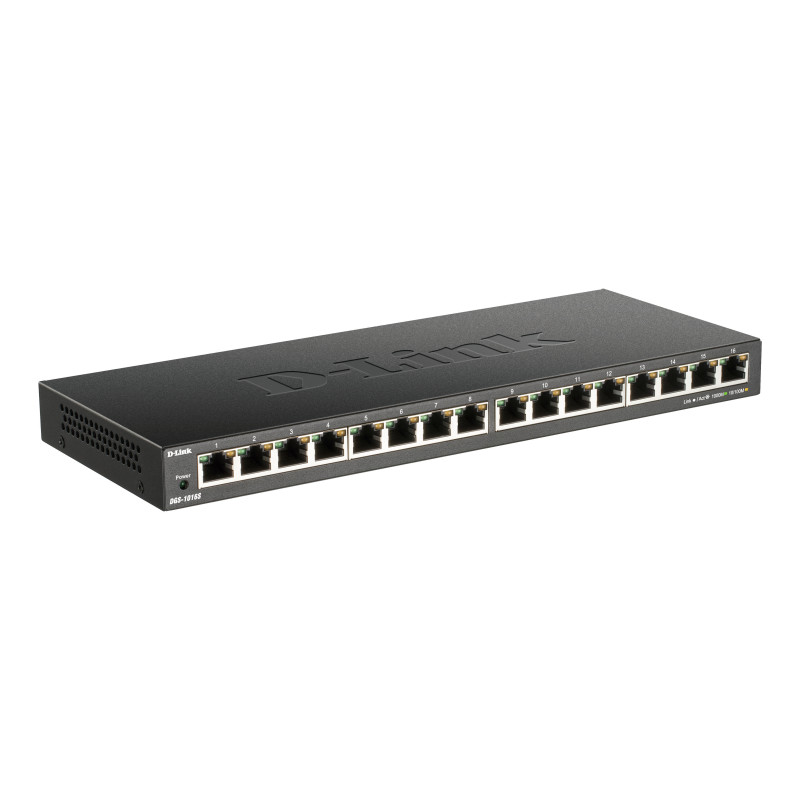

D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch
  • D-Link 16‑Port Gigabit Unmanaged Switch

D-Link 16‑Port Gigabit Unmanaged Switch

16‑Port Gigabit Unmanaged Switch
In Stock
Reference: dgs-1016s/b
Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
D-Link
dgs-1016s/b

Data sheet

10G support
No
Auto MDI/MDI-X
Y
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Certification
CE, FCC, ICES 003, RCM
Copper ethernet cabling technology
1000Base-T
Depth
110 mm
Flow control support
Y
Full duplex
Y
Heat dissipation
30.32 BTU/h
Height
25 mm
Input current
1 A
LED indicators
Activity,Link,Power,Speed
MAC address table
8000 entries
Mean time between failures (MTBF)
564658 h
Networking standards
IEEE 802.1p,IEEE 802.3az,IEEE 802.3x
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Packet buffer memory
0.512 MB
Plug and Play
Y
Quality of Service (QoS) support
Y
Safety
LVD
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
8 - 85 °C
Store-and-forward
Y
Switch type
Unmanaged
Switching capacity
32 Gbit/s
Weight
770 g
Width
280 mm
Product colour
Black
Fanless
Y
Half duplex
Y

Specific References

EAN13
0790069464256

dgs-1016sb.pdf

D-Link 16‑Port Gigabit Unmanaged Switch Data Sheet

Download (386.85KB)
