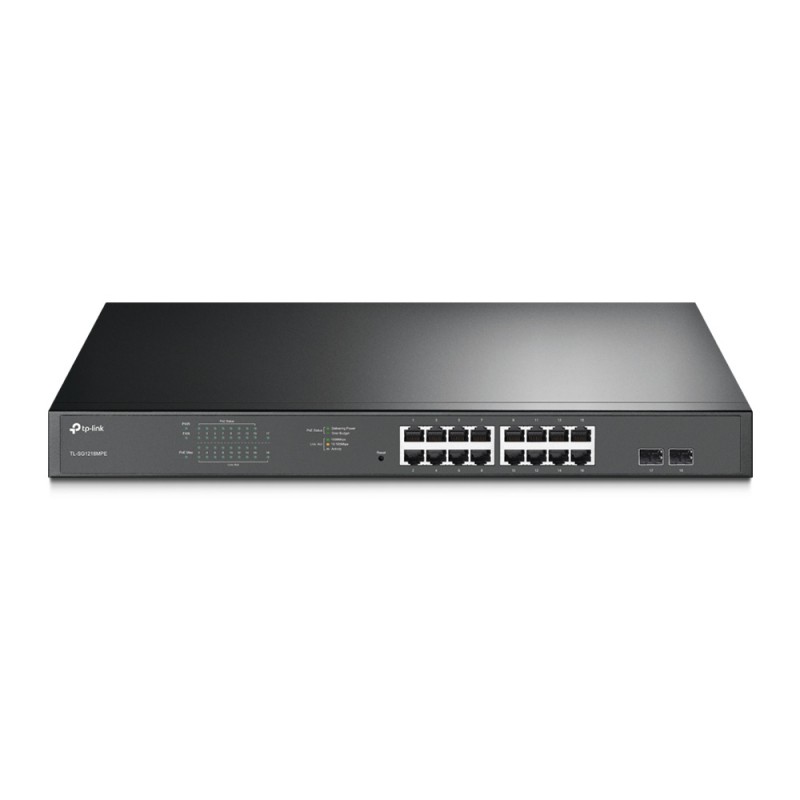

TP-LINK TL-SG1218MPE

JetStream 16-Port Gigabit Easy Smart PoE/PoE+

Out of Stock

16 10/100/1000Mbps RJ45 POE+ Ports Switch
PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
Port Priority is able to guarantee the quality of sensitive application like video monitor
Intelligent power management can protect the switch from overload
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.

Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

QoS For Smooth Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Brand TP-Link

Reference TL-SG1218MPE

Data sheet

10G support: No
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Cable types supported: Cat3,Cat4,Cat5,Cat5e,Cat6
Cables included: AC
Certification: CE, FCC, RoHS
Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
Depth: 180 mm
Fiber ethernet cabling technology: 1000BASE-X
Height: 44 mm
MAC address table: 96000 entries
Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Number of VLANs: 32
Operating temperature (T-T): 8 - 35 °C
Source data-sheet: Icecat.biz
Storage temperature (T-T): -40 - 70 °C
Switching capacity: 36 Gbit/s
Width: 440 mm
Product colour: Black
