TP-LINK MC100CM 10/100Mbps Multimode Media Converter

TP-LINK MC100CM

10/100Mbps Multi-Mode Media Converter

MC100CM

Out of Stock

Save up to 2% online

Require Project Pricing?

Click here to email your parts list and we will send you a quote

- Complies with 802.3u 10/100Base-TX, 100Base-FX standards.

- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.

- Extends fiber distance up to 2km

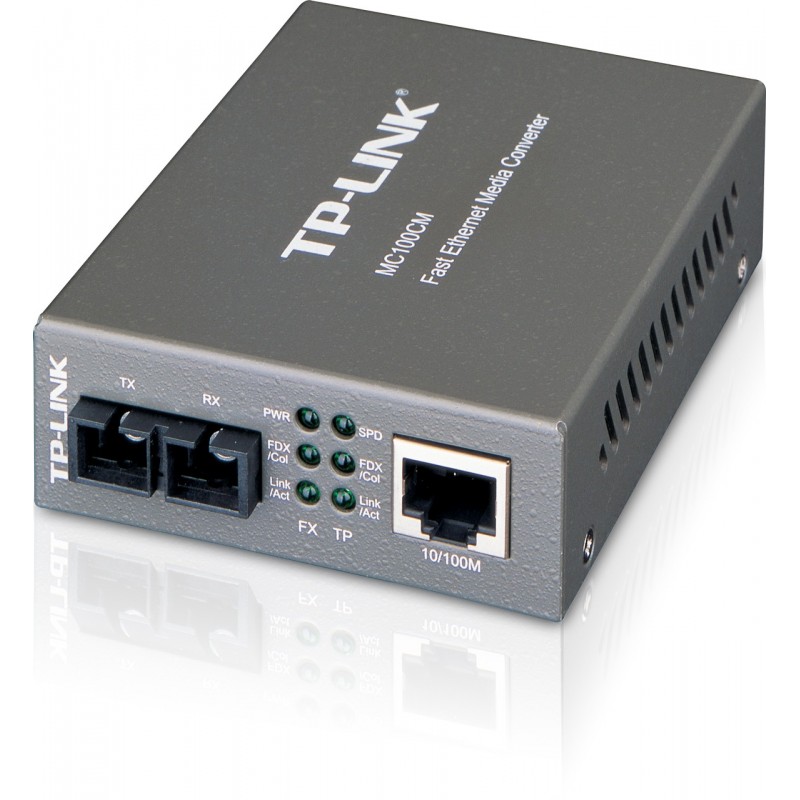

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.



Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK’s 19’’ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.



CertificationFCC, CE
Connectivity technologyWired
Operating temperature (T-T)0 - 40 °C
