TP-Link TL-PA7017 KIT

TP-Link TL-PA7017 KIT, 1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Type F, Gigabit Ethernet, 10,100,1000 Mbit/s, HomePlug AV2
In Stock
Reference: TL-PA7017 KIT
Reasons to Buy
  • HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
  • Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles
  • Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away
  • Patented Power - Saving Mode - automatically reduces power consumption by up to 85%


Technical Headlines
  • 1000 Mbit/s 300 m
  • Gigabit Ethernet
  • White


AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

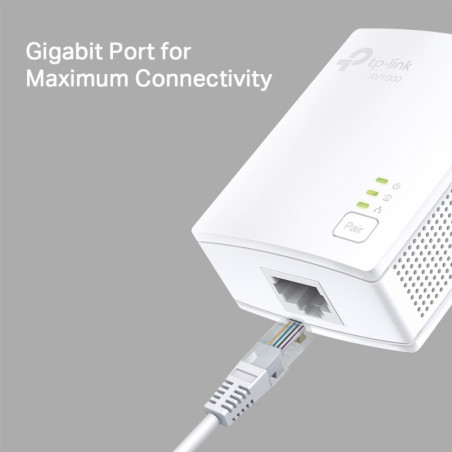

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%
TP-Link
TL-PA7017 KIT

Data sheet

AC input frequency
50 Hz
AC input voltage
220 V
Antenna type
Internal
Built-in power socket
No
Cables included
LAN (RJ-45)
Certification
CE
Depth
28.5 mm
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Height
52 mm
LED indicators
LAN, PLC, Power
Linux operating systems supported
Yes
Mac compatibility
Yes
Maximum data transfer rate
1000 Mbit/s
Maximum operating distance
300 m
Modulation
OFDM
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package height
100 mm
Package weight
410 g
Package width
190 mm
Plug and Play
Yes
Power consumption (typical)
2.3 W
Power plug
Type F
PowerLine standard
HomePlug AV2
Quantity per pack
2 pc(s)
Quick installation guide
Yes
Security algorithms
128-bit AES
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Wi-Fi
No
Width
65 mm
Windows operating systems supported
Yes
Product colour
White
Harmonized System (HS) code
85171800
Compliance certificates
RoHS

Specific References

EAN13
1210002614207

TL-PA7017KIT.pdf

TP-Link TL-PA7017 KIT Data Sheet

Download (806.5KB)
